Stable tile drainage refers to the drainage system in a stable or horse stall that is designed to manage water runoff and prevent the accumulation of moisture. Proper drainage is essential for maintaining a clean, dry, and healthy environment for horses.

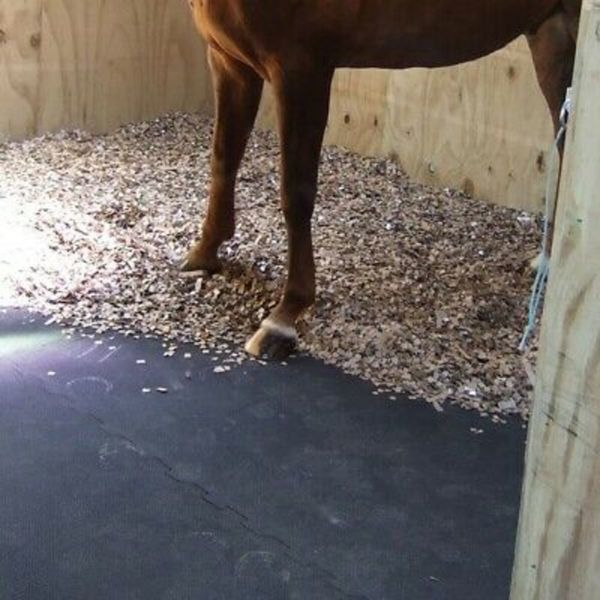

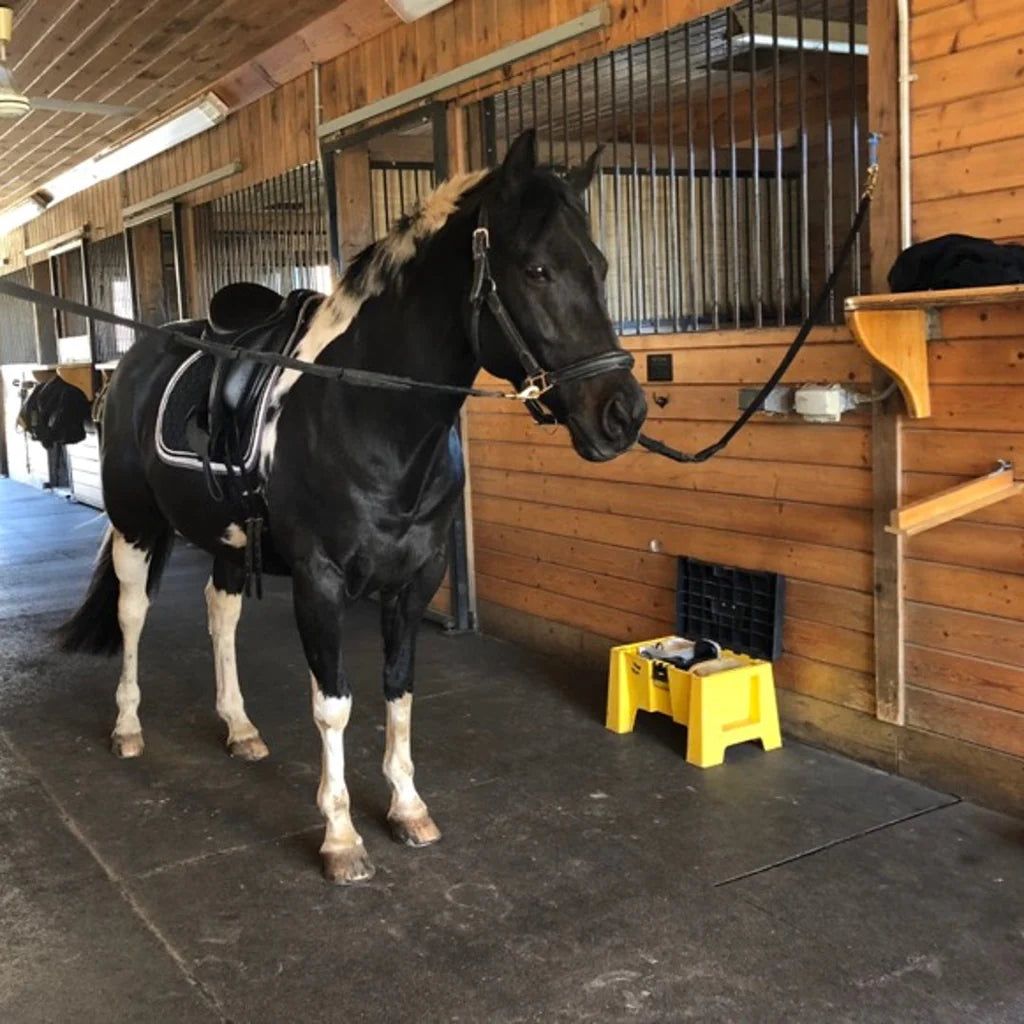

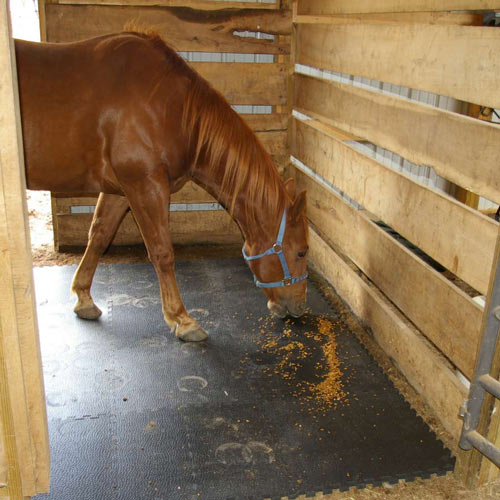

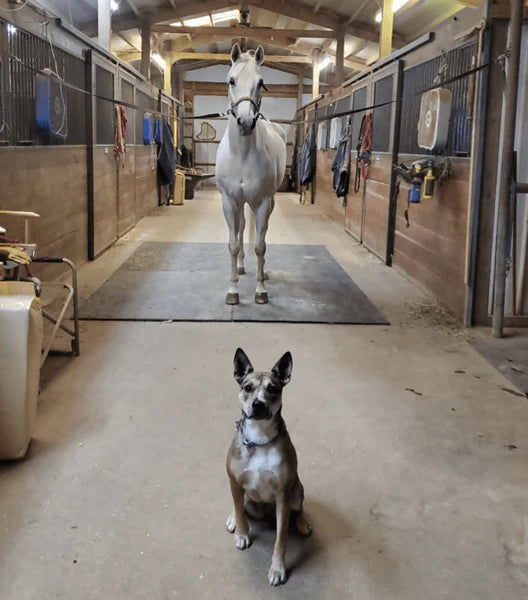

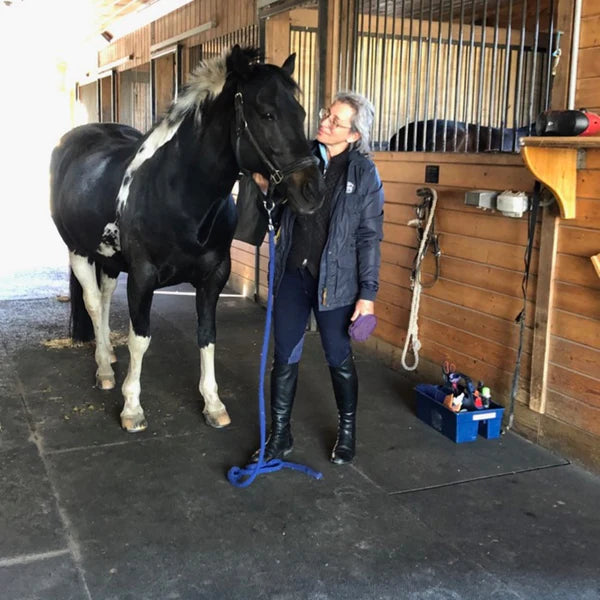

AS INSTALLED IN
Here are some key considerations for stable tile drainage:
-
Base Preparation: Before installing stable tiles, proper base preparation is crucial. The base should be graded to ensure that water flows away from the stalls and does not pool or collect near the stable area. The base should also be compact and level, to provide a solid foundation for the tiles.
-
Tile Design: When selecting stable tiles, consider options that have built-in drainage features. These tiles typically have perforations or channels that allow water to flow through them, preventing water from pooling on the surface. The design of the tiles should facilitate efficient water drainage.
-
Slope and Grading: The slope and grading of the stable floor should be designed to promote water runoff. The floor should have a gentle slope towards drainage points or floor drains to direct water away from the stalls. This helps prevent the buildup of standing water and facilitates efficient drainage.
-
Floor Drains: Installing floor drains in strategic locations can help manage excess water in the stable. Floor drains should be placed at the lowest points of the floor to collect and direct water to an appropriate drainage system. Regular maintenance of floor drains is necessary to ensure they remain clear and functional.
-
Gutters and Downspouts: Proper management of roof runoff is also essential for stable tile drainage. Gutters and downspouts should be installed to collect rainwater from the stable roof and direct it away from the stalls. This prevents water from seeping into the stable area and helps maintain a dry environment.
-
Regular Maintenance: To ensure effective drainage, regular maintenance is essential. This includes keeping drainage channels clear of debris, regularly inspecting and cleaning floor drains, and addressing any issues promptly, such as repairing damaged tiles or addressing clogged drains.
It's important to consult with professionals or experts in stable design and construction to ensure that the drainage system is properly planned and implemented. They can provide guidance on the most suitable stable tile options and help ensure that the overall drainage system is efficient and effective for your specific stable setup.
Features
- High Comfort
- Low Maintenance
- Easy Cleaning
- Heavy Duty
- Ultra Safety with a Non-Slip Surface
- All Weather-Proof
- 3 Colours
- 4 Year Warranty
Specifications

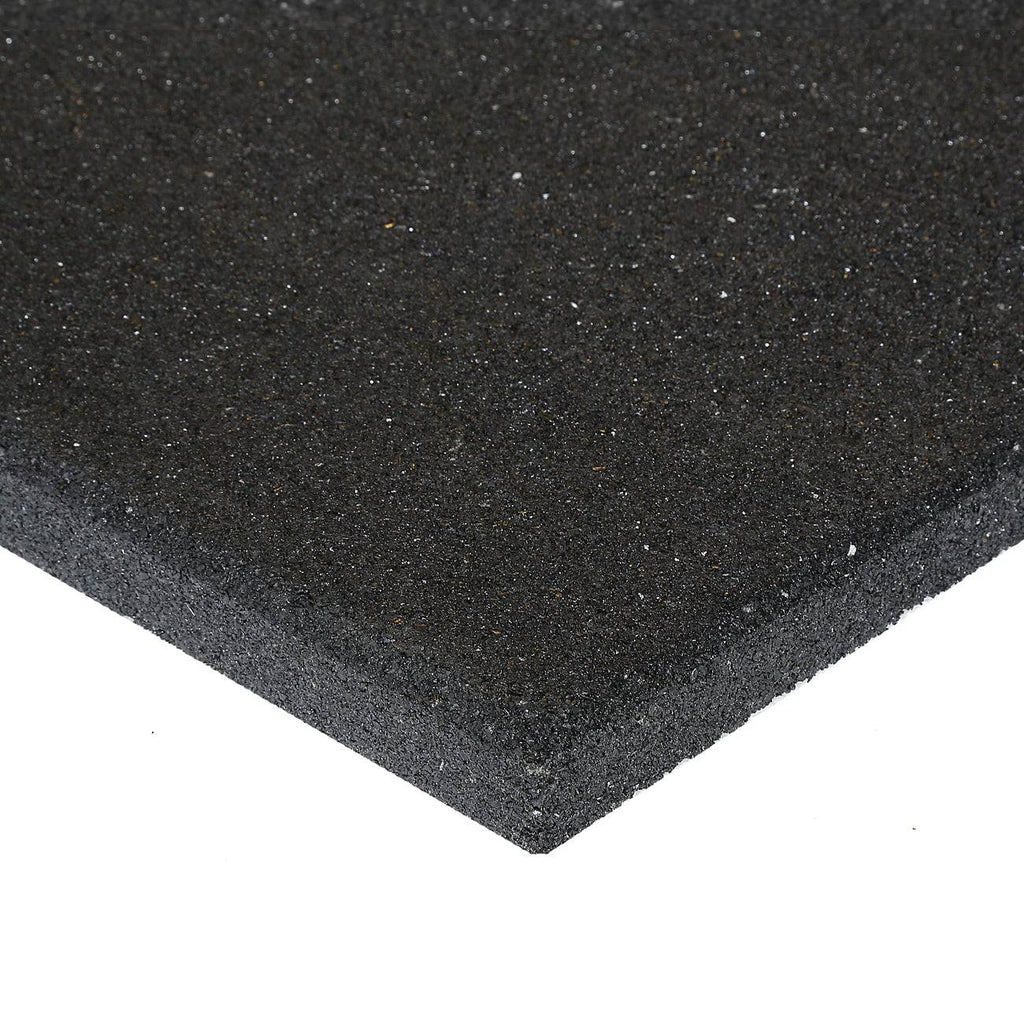

Dimensions: 500mm x 500mm x 40mm
Size tolerance length: +/- 2%
Size tolerance thickness +/- 4%
Colours: Black, Red, Green
Fitting
Please click the link here for an easy guide to fitting these tiles.
| Product | |
|---|---|
| Dimensions | 500mm x 500mm |
| Thickness(es) | 30mm/40mm |
| Shape | Square |

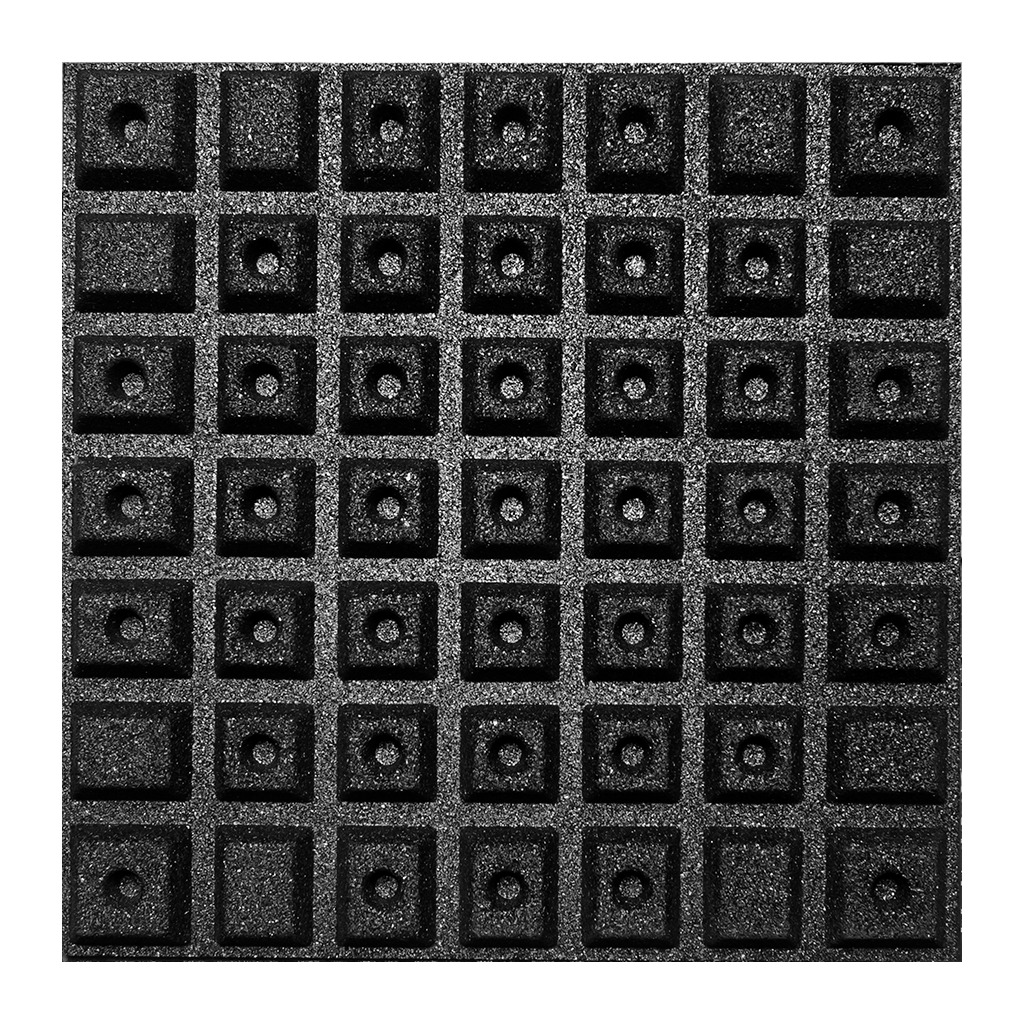

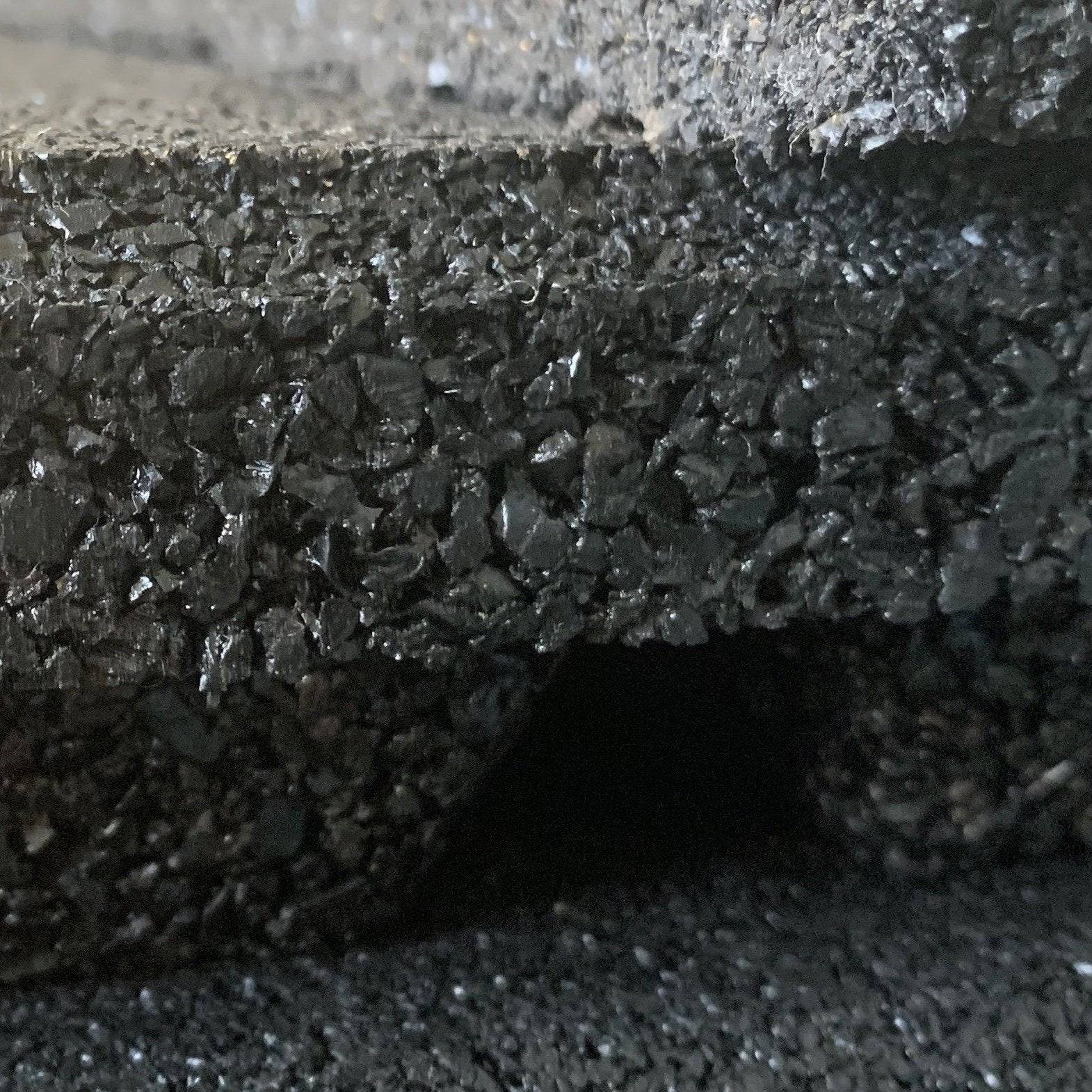

| Profile | Flat with Studded Underside |
| Colour(s) | Black/Green/Red |
| Applications | Outdoor Domestic & Commercial Use |
| Material | |
|---|---|
| Properties | Tough Elastic, High Compression Resistance and Impact Strength |

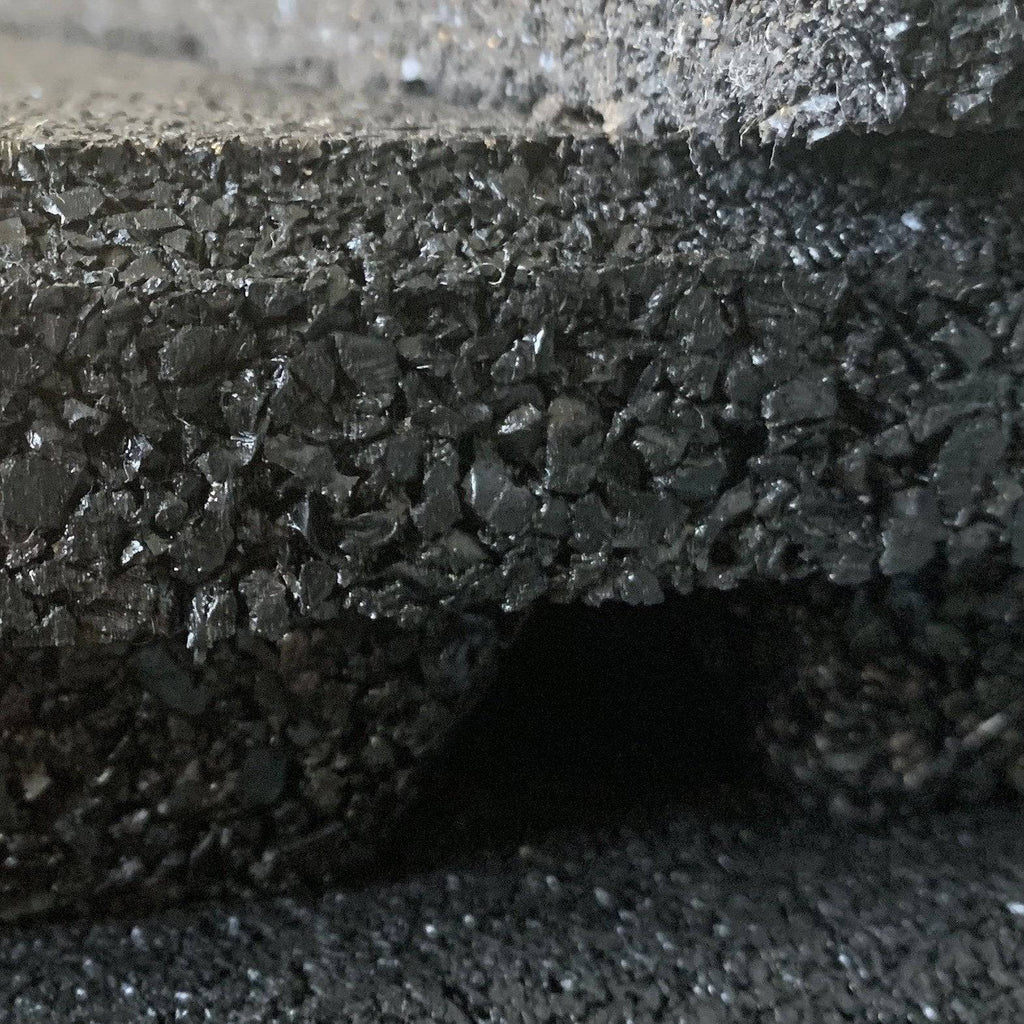

| Composition | 92% Recycled SBR Rubber bonded with 8% PU |
| Technical Specification | |
|---|---|
| Width | +/-2% |
| Length | +/-2% |
| Thickness | +/-4% |
| Dry Conditions (Slip Resistance) | ≤ 105PTV | PN -EN 13036-4 2004 |
| Wet Conditions (Slip Resistance) | ≤ 75PTV | PN -EN 13036-4 2004 |
| Abrasion Resistance, mg | ≤ 560 | PN - EN ISO 5470-1:2001 |
| Tensile Strength, MPA | ≥ 0.65 |
| Elongation At Break | ≥ 40 | PN - EN 12230:2005 |
| Hardness | 55 up to 75 | PN - ISO 868 PN-93/C-04206 |
| Density | 950 to 1,000kg/m3 | OTP 1168 PN-EN ISO 845 - 2010 |
| Fire Classification | EF1 |
DATA SHEET
| Composition
|
92% SBR rubber + 8% PU adhesive |
| Gym activity
|
Weightlifting & crossfit |
| Maximum weight drop
|
max. 250 KG
|
| Dimensions
|
100cm x 100cm
|
| Bulk density
|
1050 KG/M3
|
| Thickness
|
40mm
|
| Guarantee Duration
|
4 Years
|
Our current lead times are:
Stock items - 3 working days
Non-stock items - 5-7working days
For Pre-Order items we aim to dispatch these on the same day we receive the stock.
The website will be kept up to date with the current ETA
