Pre Sale Only - Due May 2024

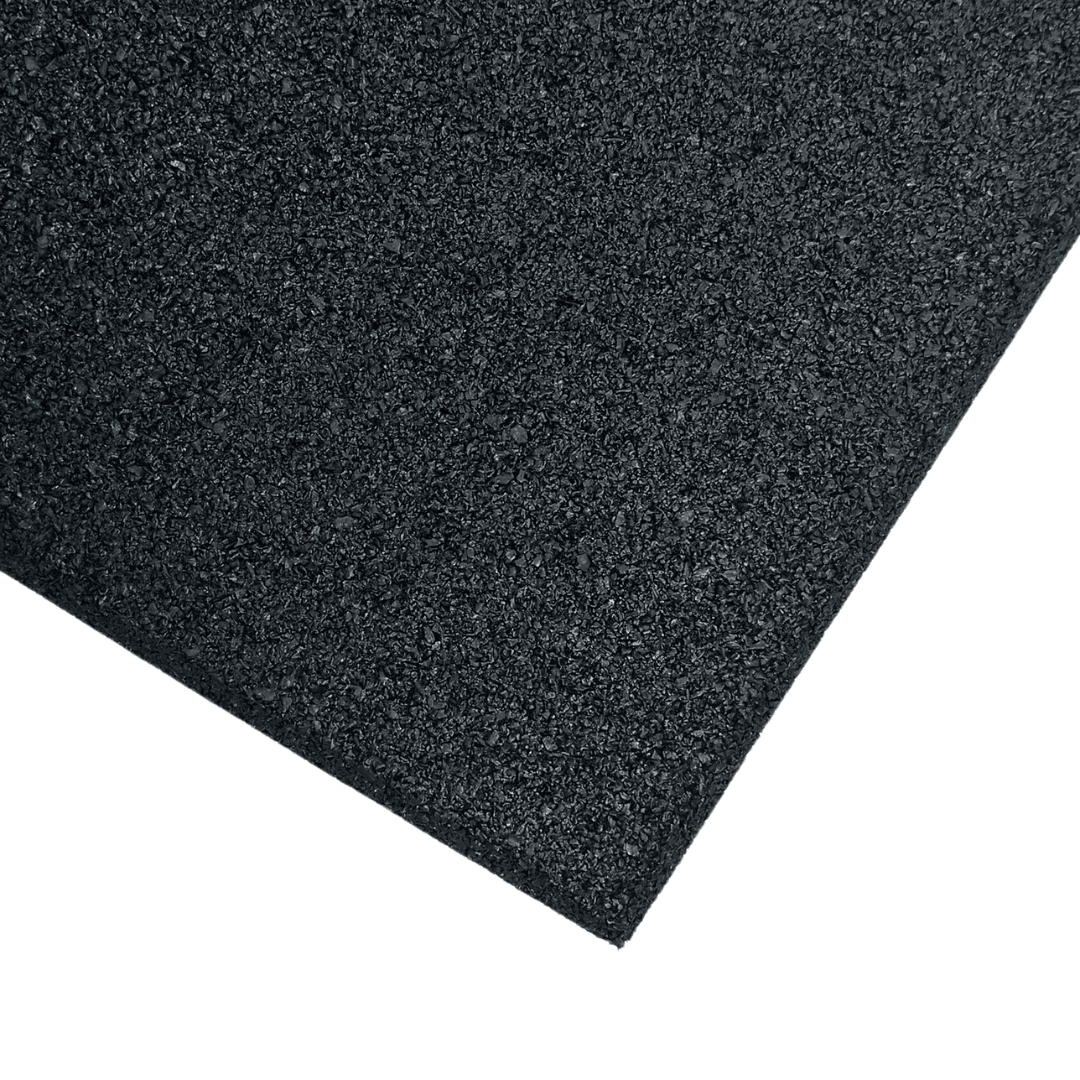

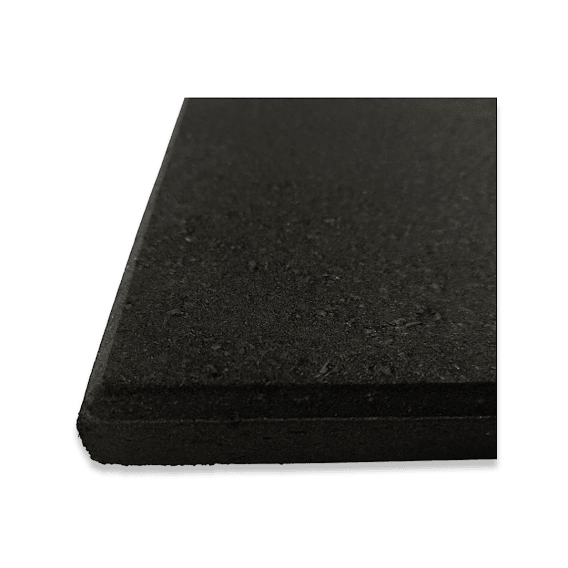

Washing area equine 30mm tiles, also known as wash bay tiles or wash stall mats, are specialized flooring systems designed for use in horse wash areas. These tiles are specifically engineered to provide a safe and comfortable surface for bathing and grooming horses.


Logo 1
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3
Logo 3

Here are some key features and benefits of washing area equine tiles:

  1. Slip Resistance: One of the most critical features of washing area tiles is their slip resistance. These tiles are designed to provide excellent traction even when wet, reducing the risk of slips and fall for both horses and handlers. The textured surface of the tiles helps horses maintain a secure footing during the bathing process.

  2. Drainage: Washing area equine tiles typically have built-in drainage systems that allow water to flow through the surface. They often feature perforations or channels that efficiently drain water away from the area, preventing pooling and ensuring a clean and dry surface. This helps to maintain a safe and hygienic environment for both horses and handlers.

  3. Cushioning and Comfort: These tiles offer cushioning and shock absorption properties, providing a comfortable surface for horses to stand on during bathing. The resilient nature of the tiles helps reduce the stress on horses' joints and muscles, making the washing experience more pleasant for them.

  4. Durability: Washing area equine tiles are designed to withstand the rigors of daily use in a wash bay environment. They are typically made from durable materials such as rubber or high-density polyethylene (HDPE) that can withstand exposure to water, cleaning chemicals, and heavy horse traffic. This durability ensures a long-lasting and reliable flooring solution.

  5. Easy Maintenance: Washing area equine tiles are relatively easy to clean and maintain. They can be quickly hosed down or power-washed to remove dirt, soap residue, and hair. The non-porous nature of the tiles prevents water absorption and the growth of mold or bacteria, promoting a clean and hygienic environment.

  6. Versatility: While primarily used in wash bays, these tiles can also be used in other areas of equestrian facilities, such as grooming stalls or cross-tie areas. They provide a consistent surface throughout the facility and can contribute to the overall safety and well-being of the horses.

Dimensions 500mm x 500mm
Thickness(es) 30mm/40mm
Shape Square
Profile Flat with Studded Underside
Colour(s) Black/Green/Red
Applications Outdoor Domestic & Commercial Use
Properties Tough Elastic, High Compression Resistance and Impact Strength
Composition 92% Recycled SBR Rubber bonded with 8% PU
Technical Specification
Width +/-2%
Length +/-2%
Thickness +/-4%
Dry Conditions (Slip Resistance) ≤ 105PTV | PN -EN 13036-4 2004
Wet Conditions (Slip Resistance) ≤ 75PTV | PN -EN 13036-4 2004
Abrasion Resistance, mg ≤ 560 | PN - EN ISO 5470-1:2001
Tensile Strength, MPA ≥ 0.65
Elongation At Break ≥ 40 | PN - EN 12230:2005
Hardness 55 up to 75 | PN - ISO 868 PN-93/C-04206
Density 950 to 1,000kg/m3 | OTP 1168 PN-EN ISO 845 - 2010
Fire Classification EF1


92% SBR rubber + 8% PU adhesive
Gym Activity
Strength & Weight Training / Crossfit
Maximum Weight drop
max. 200KG
50cm x 50cm
Bulk Density
1050 KG/M3
Guarantee Duration
4 Years

Dispatch is normally within 1-3 working days, however there can be occasions where the lead time increases due to delays in stock deliveries to us. You will be notified if there is any delay on your order.

Your delivery will be made on a pre-arranged date with the courier. They will contact you directly to organise a suitable delivery date, please ensure we have the most appropriate contact number.

Your order will be delivered on a pallet on a kerbside delivery basis. Please let us know when ordering if there are any access issues for an 18t vehicle to make the delivery to your property. A smaller vehicle can be arranged at an extra charge.

  • 4 Year Warranty
  • CE Certified
  • REACH Certified
  • VOC Certified
  • Abrasion EN ISO 5470-01: 2001
  • Flameproof 11925-2:201 Flame Retardancy
  • Sound Insulation Tested (Airborne and Sound Impact)
  • Friction Tested
  • EN 1177:2018 Height Drop Certification

Please find attached 4 Year Warranty Cert.
