BOEN - Elevation Undercarriage Batten System for Arenaflex Stadium and Olympia

Arenaflex is designed for venues with different building heights and uneven levels of a sub-floor.

This area-elastic sports floor offers a combination of rigidity and comfort, which makes it versatile and practical for sports halls, gymnasiums and recreation halls.

Arenaflex Elevation System is a resilient hardwood floor laid onto a highly durable cradle system. It is suitable for installation with underfloor heating systems and insulation.

Arenaflex is suitable for new constructions as well as renovation. In addition, construction time can be reduced as no levelling compound or similar is needed. Arenaflex is easy to handle and transport as it is delivered in practical pre-cut and fixed lengths.

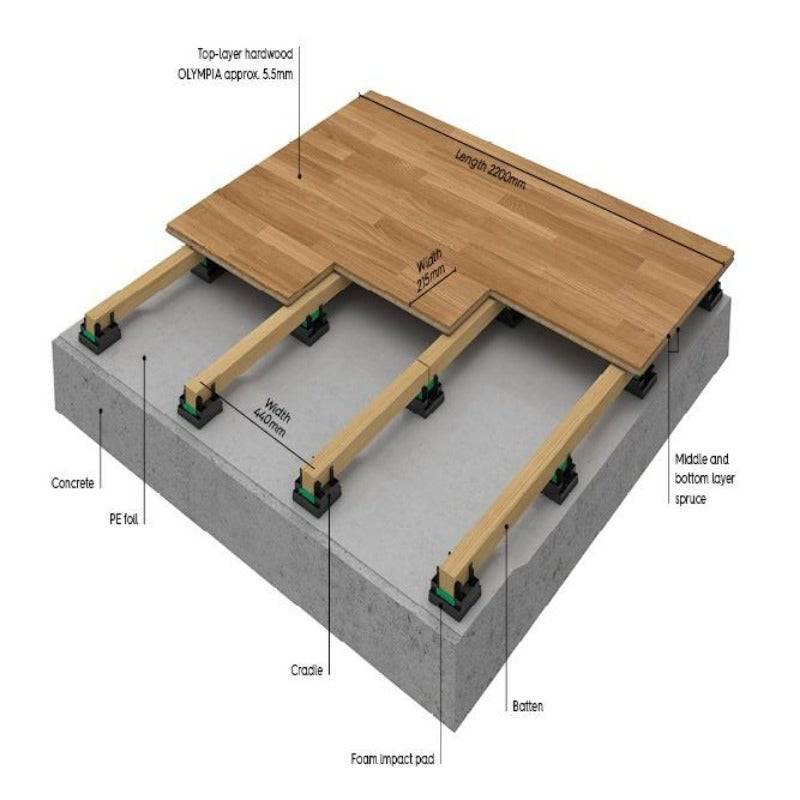

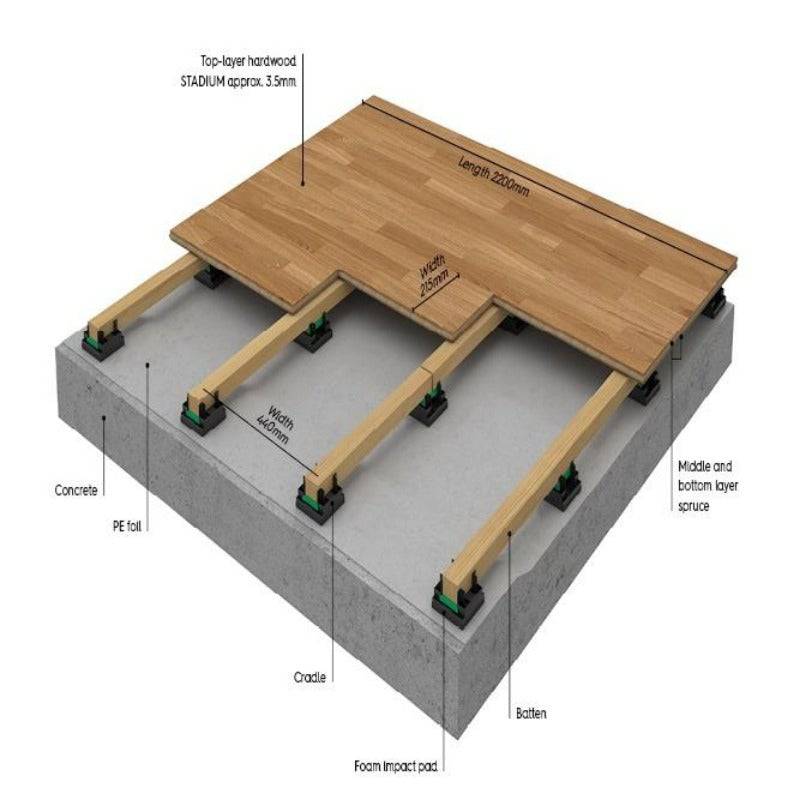

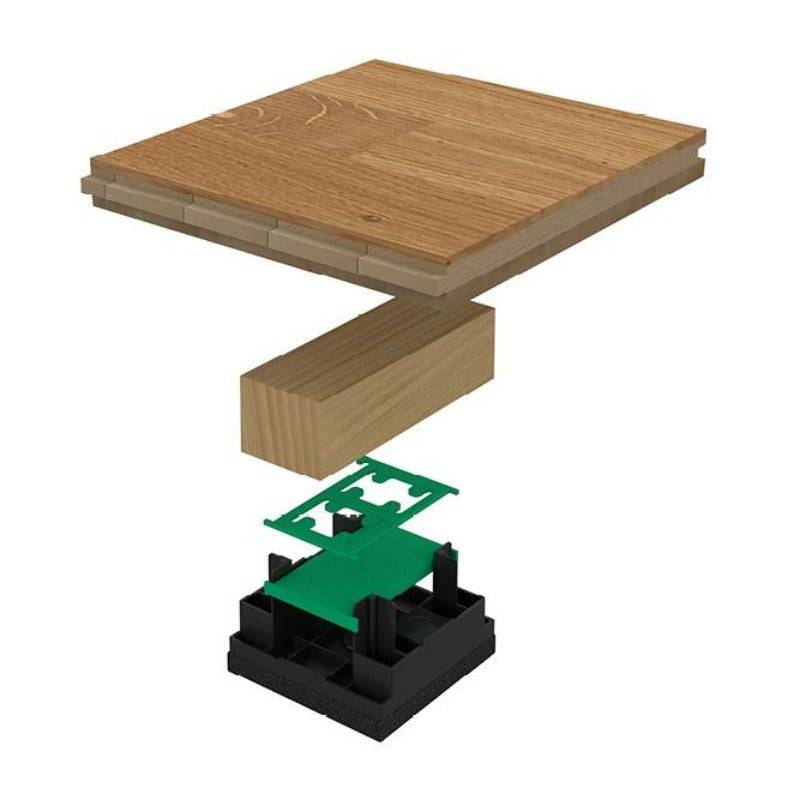

An area-elastic sports floor made up of impact-resistant and highly durable cradles with an integral 10 mm foam impact pad on the underside which support softwood battens. Can be installed on an uneven subfloor

Elevation Under-structure

• 18/32 mm cradle - 90 x 90 x 18/32 mm (box of 420)
• 47/62 mm cradle - 90 x 90 x 47/62 mm (box of 180)
• 36 mm plain batten - 36 x 45 x 1800 mm
• 48 mm plain batten - 48 x 45 x 1800 mm
• 2 mm packer - bag of 300
• 6 mm packer - bag of 150

Info:

Lead time for delivery @ approx 4 weeks

Pack Size: 4 boards = 1.89 m2 (21 kg). Pallet Size: 45 packs = 85.05 m2 (945 kg) Standard Batten Centres at 440 mm - Batten Calculation = 2.52 lm/m2 of floor.

Cradle Calculation: Batten 36 mm = cradle centre 450 mm = 5.6 cradles/m2. Batten 48 mm = cradle centre 600 mm = 4.2 cradles/m2. We reserve the right to deliver one element as random length in each pack. Under-structure cannot be purchased without ordering wood top layer. Other species available upon request.
