Sprung Konnecta Fleckz Coloured Fitness Self-Locking Tiles- 20mm (6 colours)
Product | |
---|---|
Dimensions | 1000mm x 1000mm |
Thickness | 20mm |
Colour(s) |
Light Grey/Dark Grey Red/Blue/Green/Yellow |
Shape | Square |
Profile | Bevel Edge and Square Studded Underside with Holes for Connector Pieces |
Installation | Plastic Connection System |
Maximum Weight Drop | 140kg |
Applications | Functional Training, Free Weights up to 140kg, Cardio & Strength, CrossFit |
Material | |
---|---|
Composition | 70% Recycled EPDM Rubber & 30% Recycled SBR Rubber |
Technical Specification | |
---|---|
Width | + 4mm |
Length | + 4mm |
Thickness | + 2mm |
Bulk Density Toplayer | Approx 1400kg/m3 |
Bulk Density Sublayer | Approx 1000kg/m3 |
Shock Absorption | 61% | EN 14808 |
Head Injury Criteria (HIC) Test | 1.3m | EN 1177 |
EU Fire Classification | E F1 |
Vertical Deformation | 5.0mm | EN 14809 |
Thermal Resistance | 0.16m2.K/W |
Sound Insulation | 21dB Reduction |
The Konnecta 20mm tile is formulated from quality HD rubber, has a simple assembly and offers maximum structural support (the tiles remain in position) during high impact activity.
AS INSTALLED IN
The 20mm Konnecta Fleckz is available in 5 complimentary colour options adding tone, texture and character to any modern studio.
**Please note these tiles are not a stock item. Lead time is approx 10-14 working days**
All tiles come with a 4 year warranty against premature cracking and colour defects.
Unlike cheaper alternatives, we only use Binder (adhesive) which allows for an odourless rubber.
Applications
Cross Fit, Functional Training, Strength & Conditioning, Medium to Heavy Weights
Installation

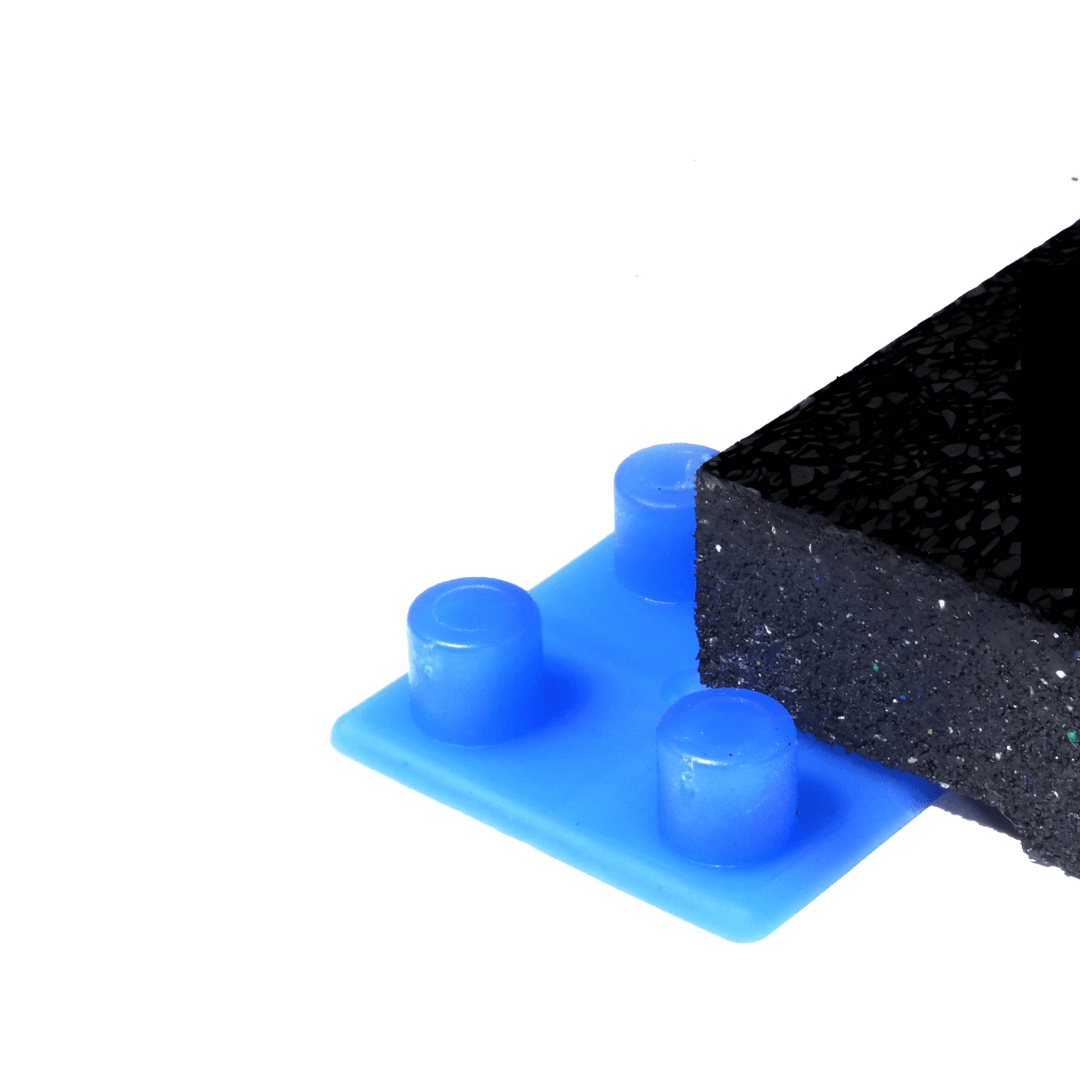

Connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place. The tiles can also be loose laid or glued using adhesive. The rubber can be cut to size using a utility knife.
The elastic tiles are produced under high temperatures and will shrink after production. This means that there is always a dimension tolerance on length, width and thickness. Due to the different dimensions of the tiles, we advise installing the tiles 'half brick wise' and not corner to corner. It is important that the outer tiles are fixed between a wall or profile so that all tiles can be placed under compression.
Sub-floor
The sub-floor requires to be level, firm and dry.
Cleaning
Depending on traffic, the tiles can be kept clean by a standard vacuum cleaner and damp mop. Cleaning machines can be used but should have the correct pads for rubber flooring to prevent abrasion. A PH neutral cleaner with warm water only should be used and not solvent-based detergents. Newly installed floors would benefit from a degreaser in the first few weeks. For maintenance guidelines please see here.
