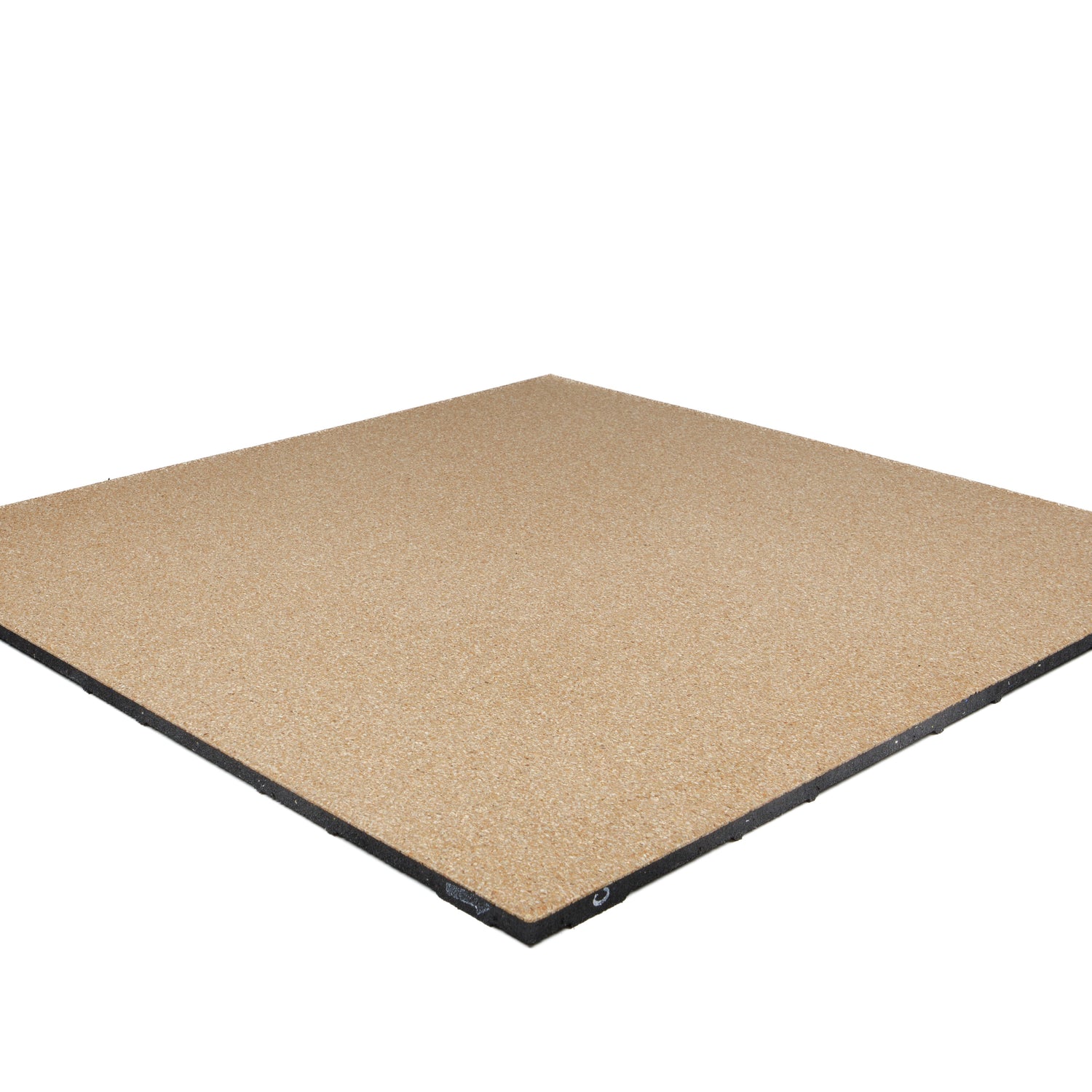

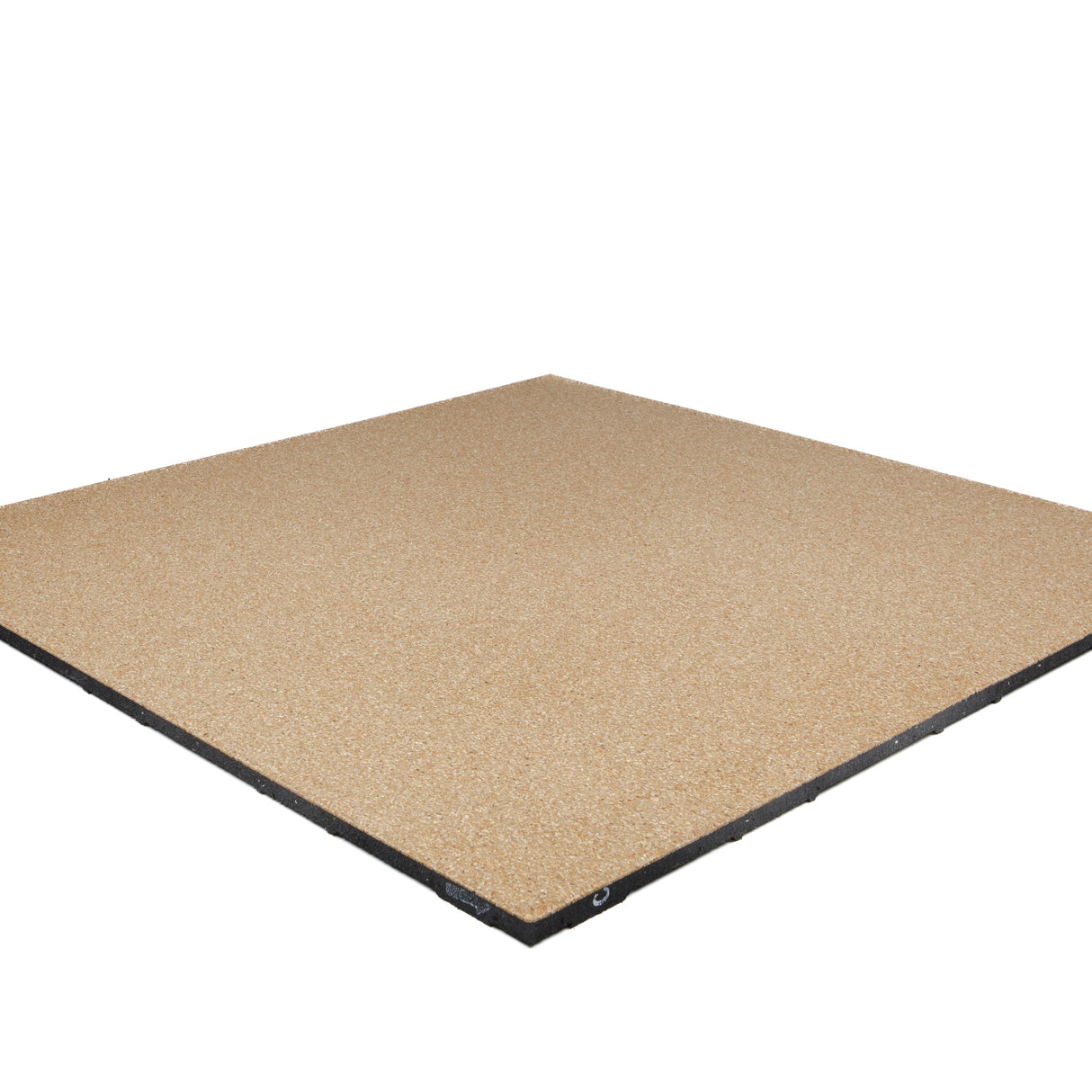

Sprung Konnecta Navagio Premium Gym Flooring Mats - 20mm (NEW PRODUCT)

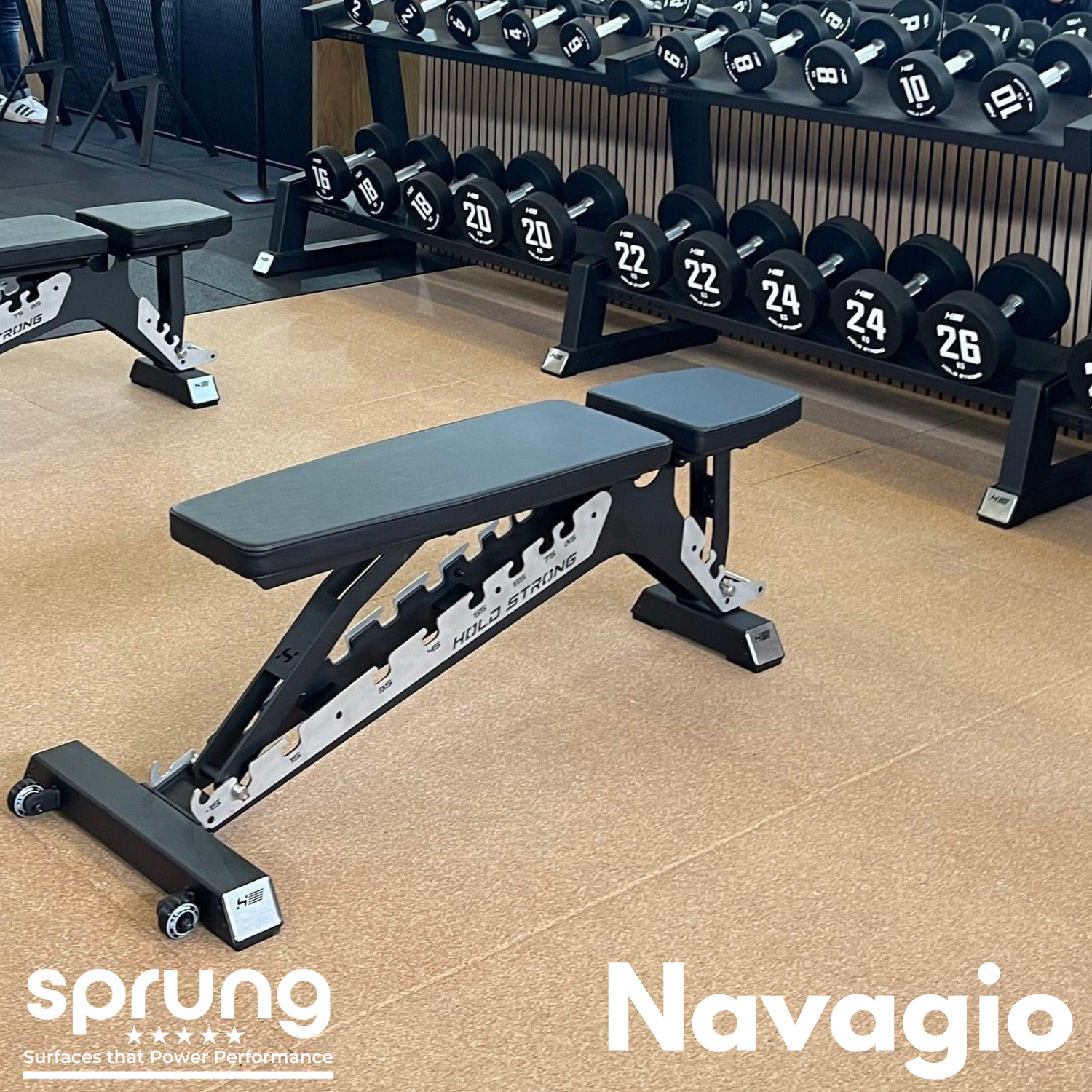

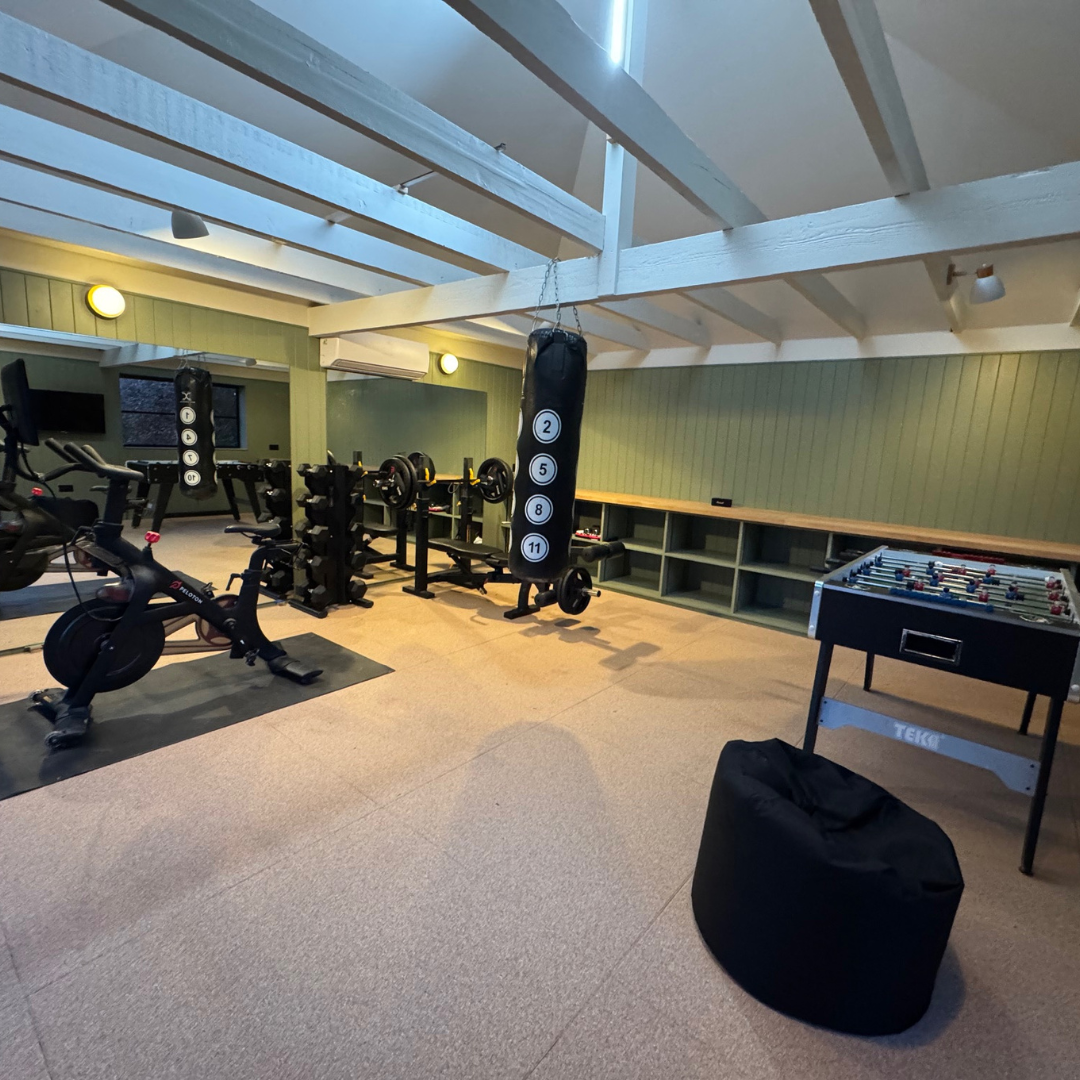

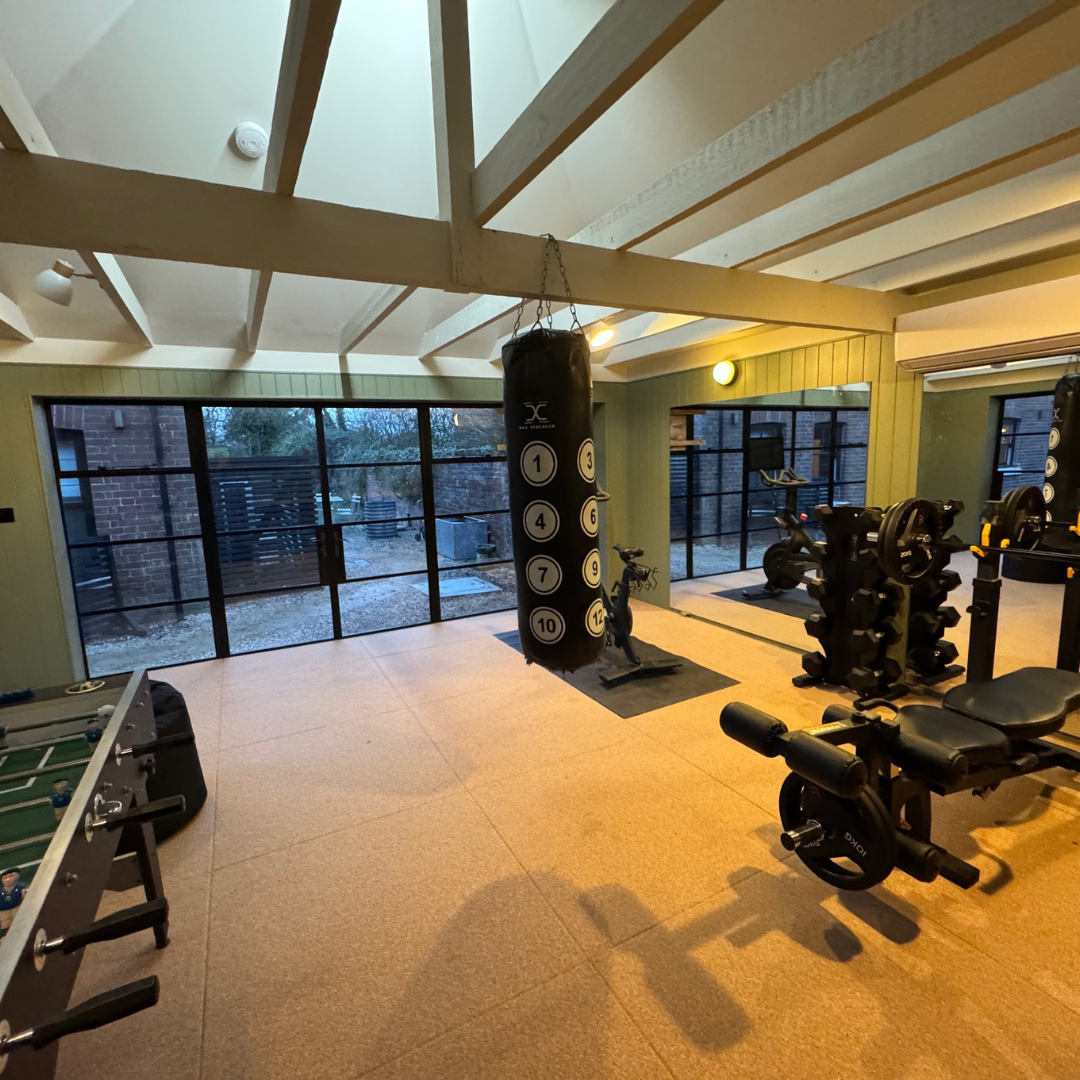

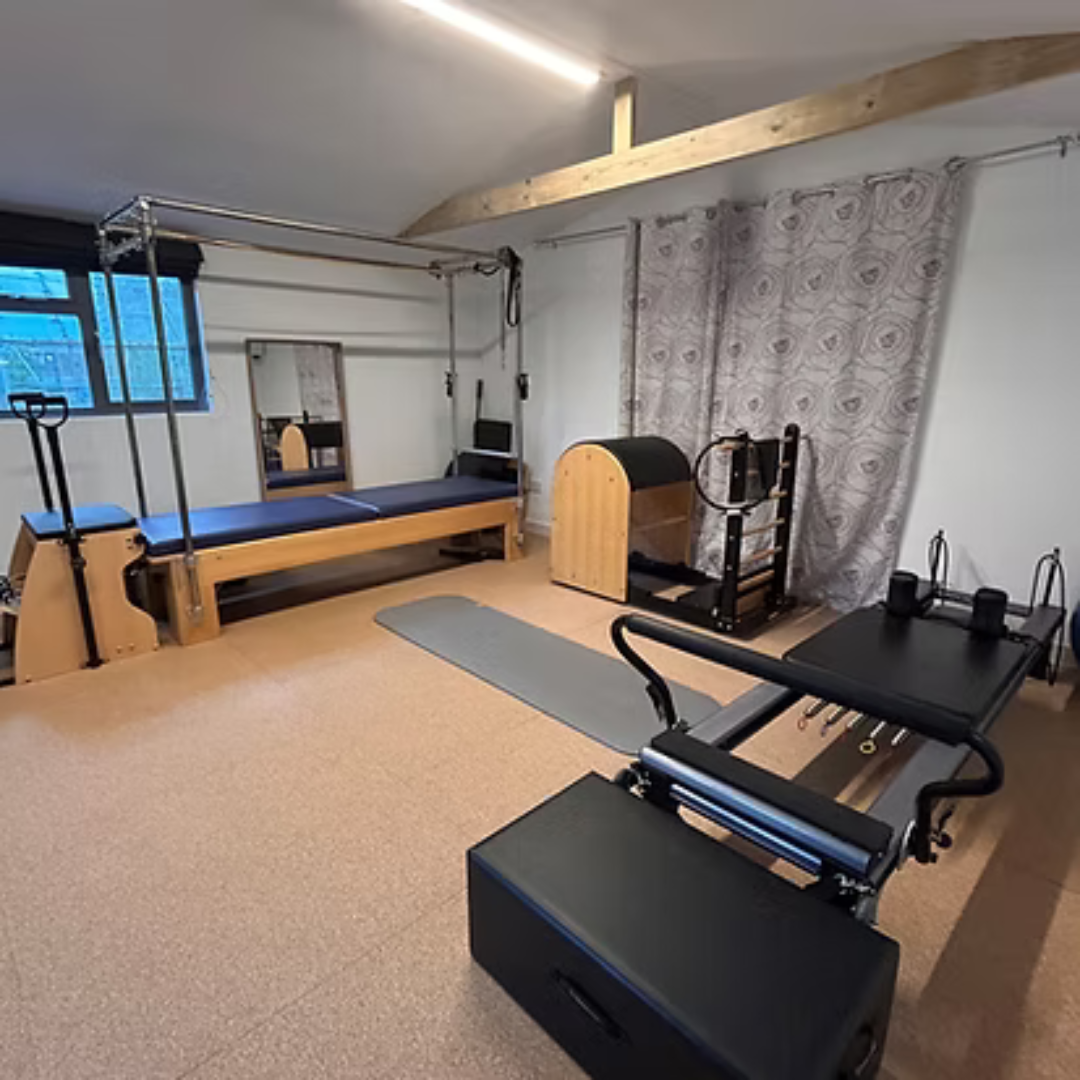

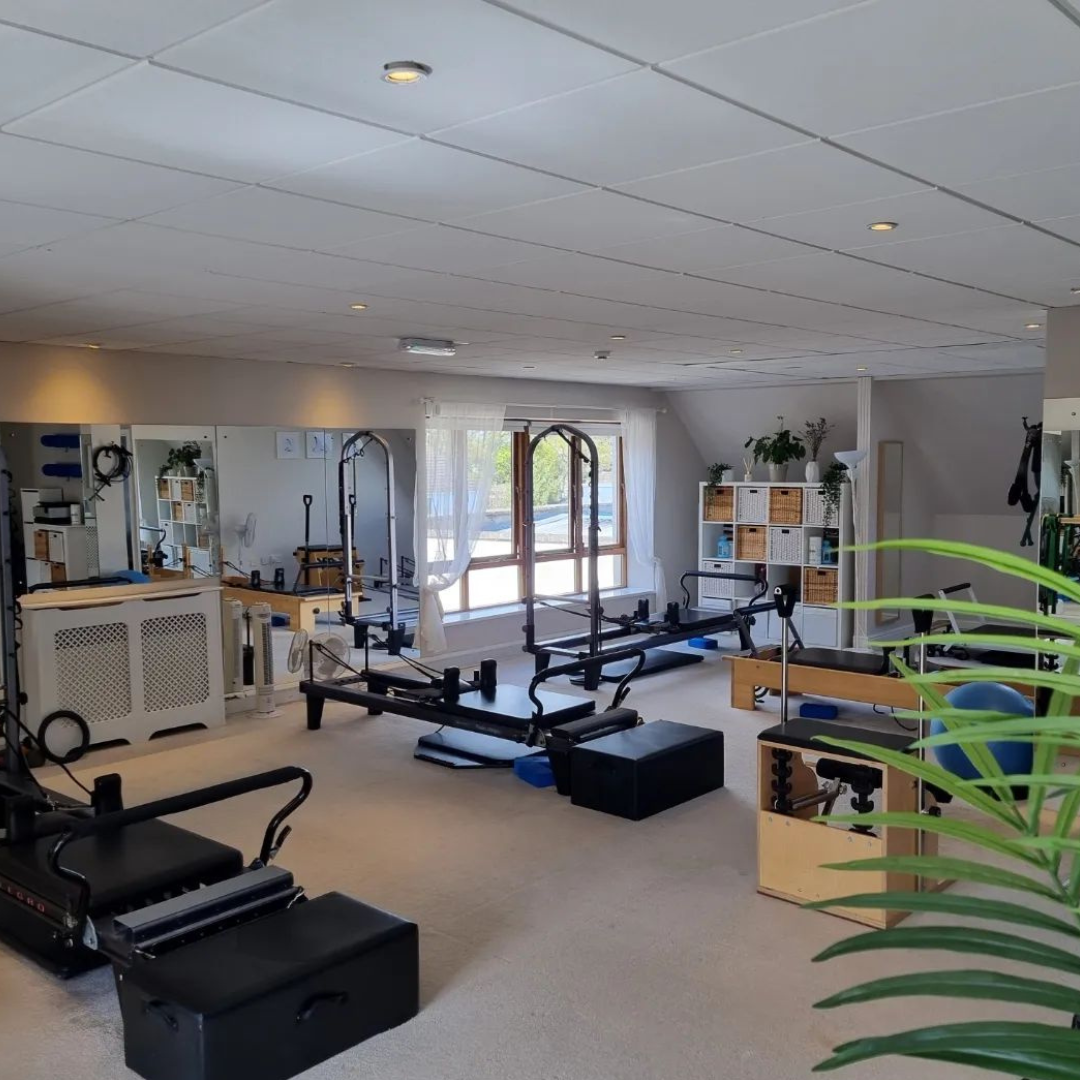

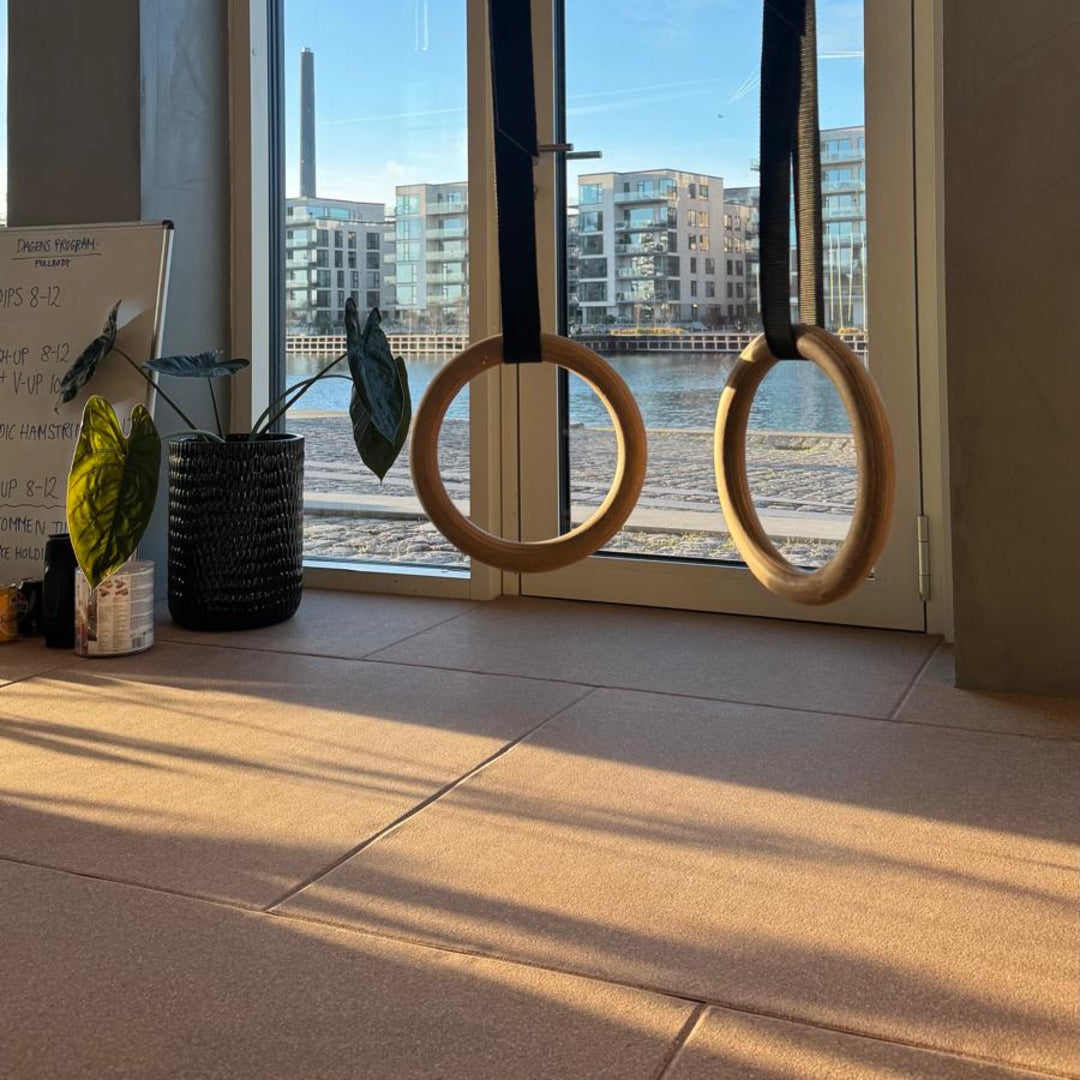

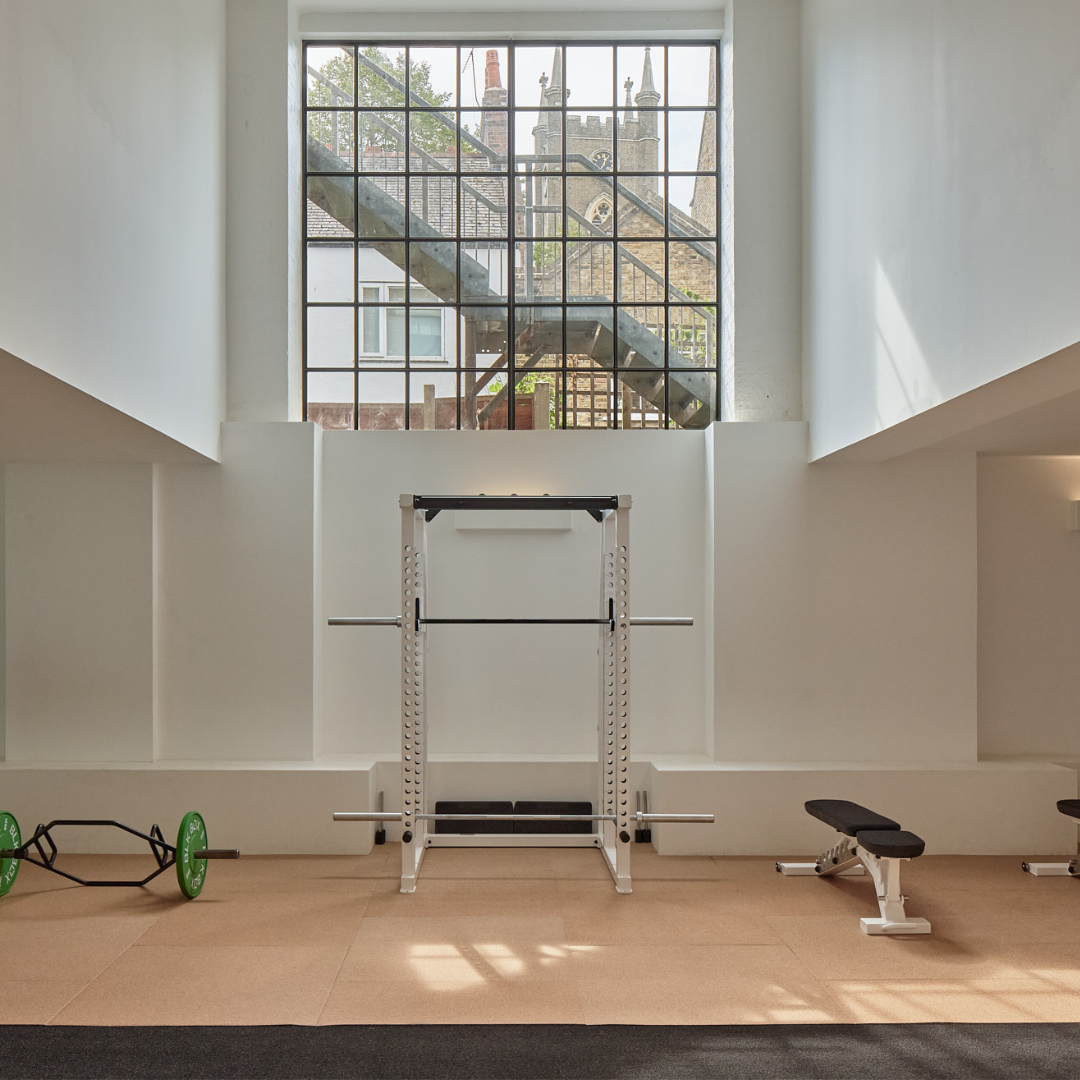

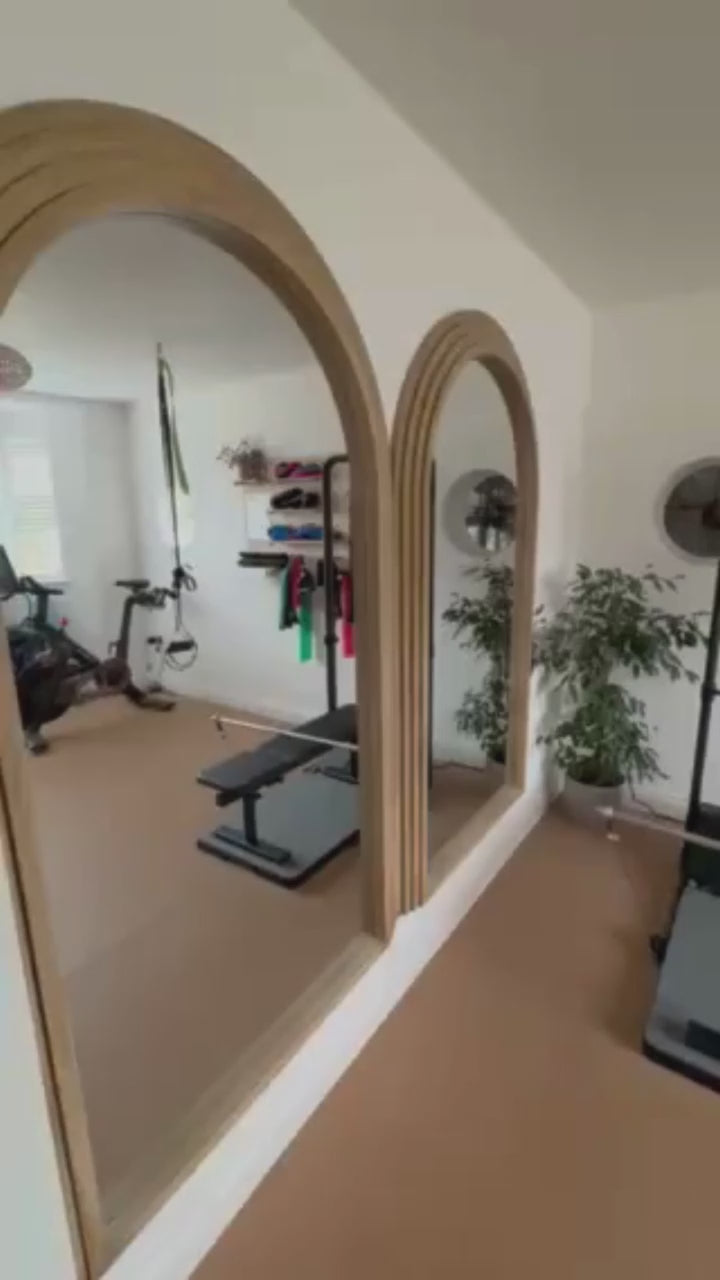

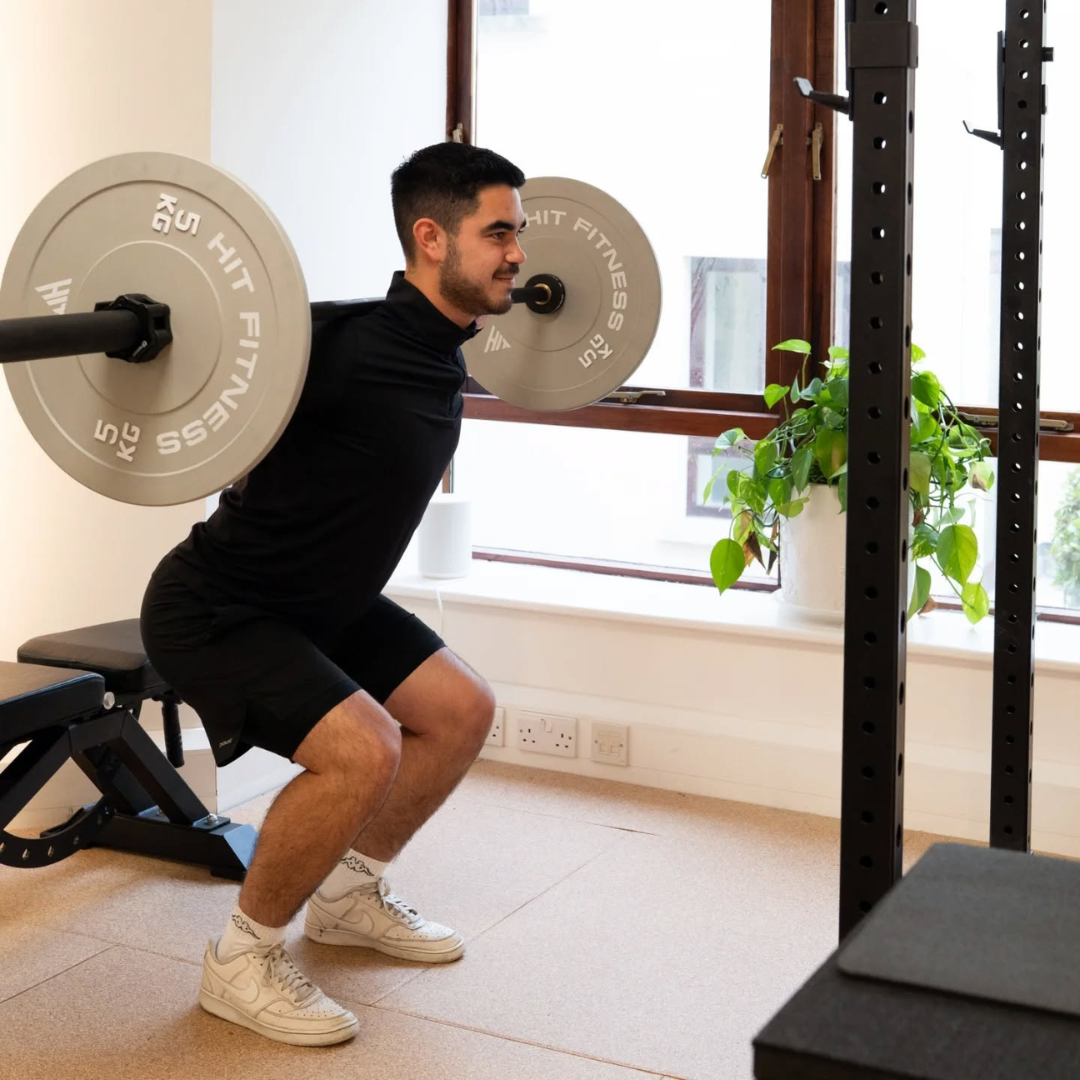

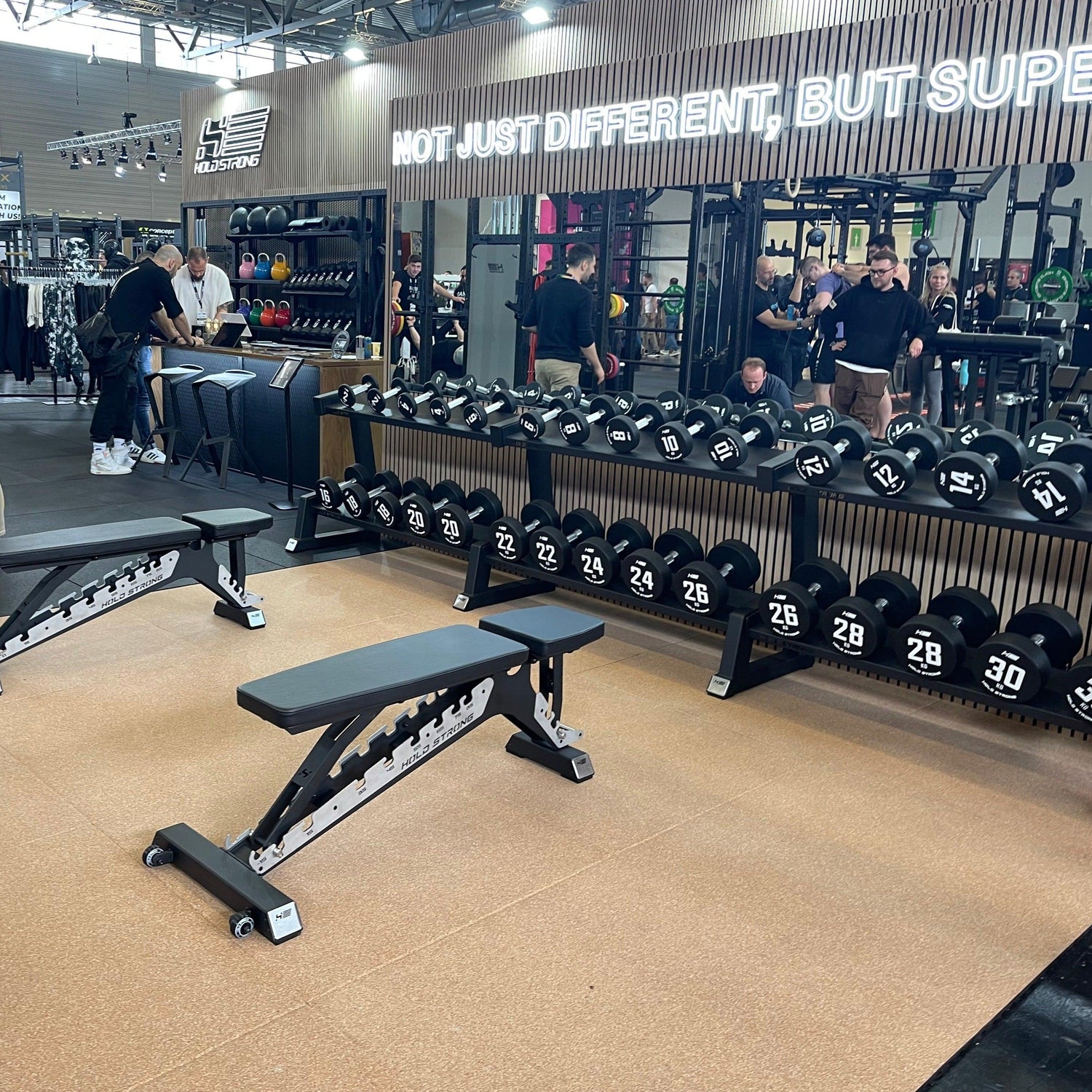

AS INSTALLED IN
| Product | |
|---|---|

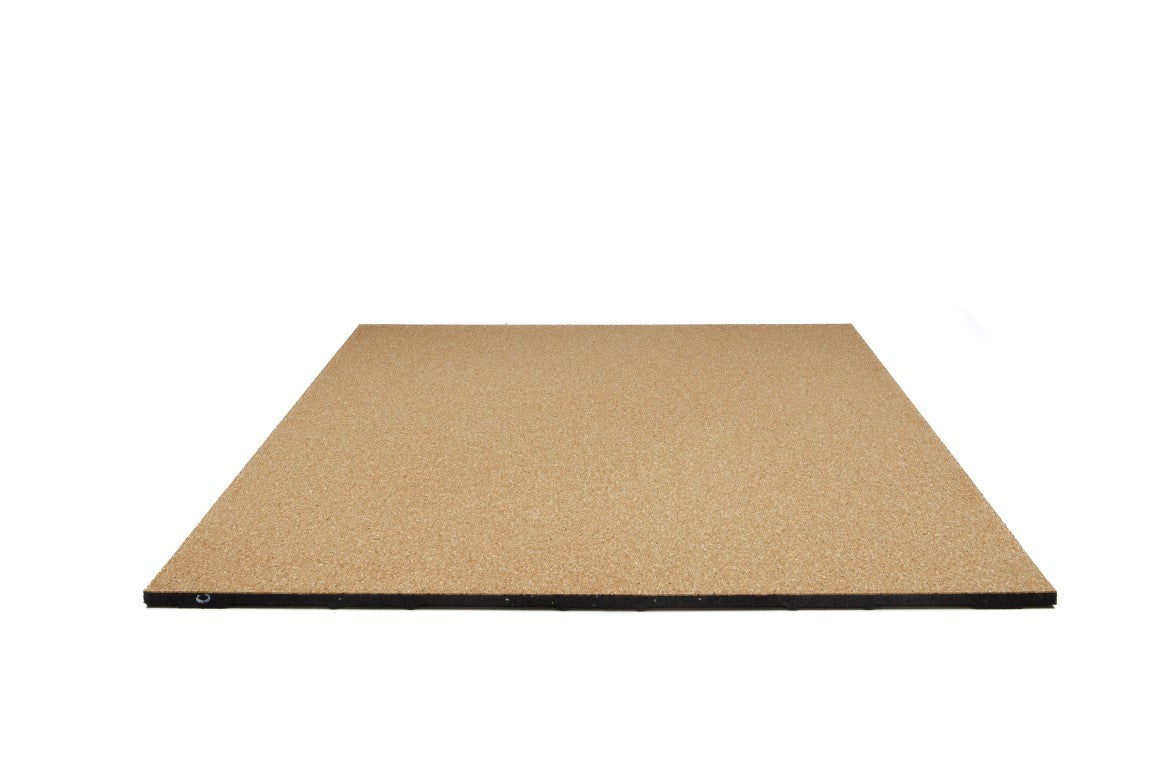

| Dimensions | 1000mm x 1000mm |
| Thickness | 20mm |
| Colour | Desert Beige, Mid Brown, Light Brown & Orange Fleck |
| Shape | Square |

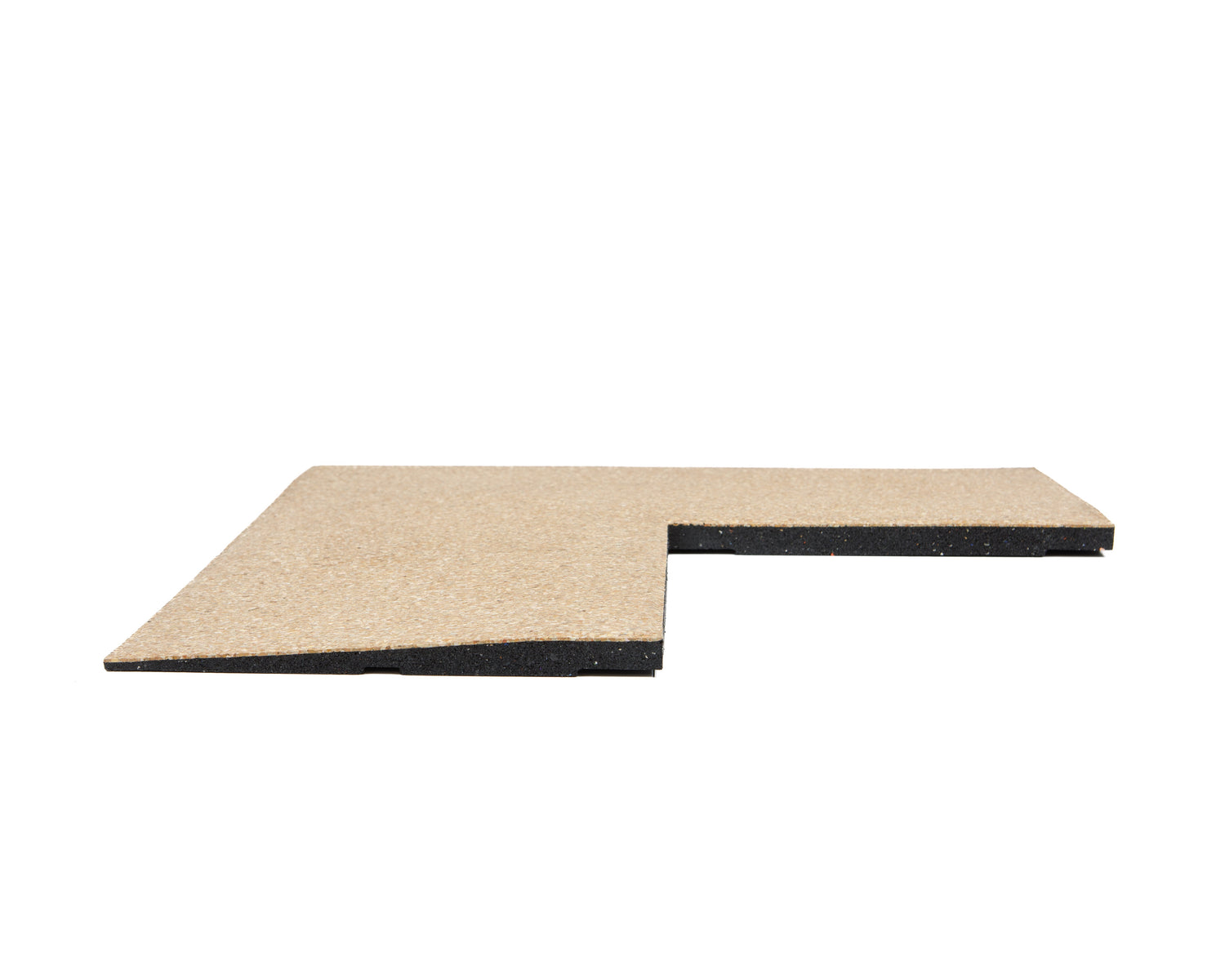

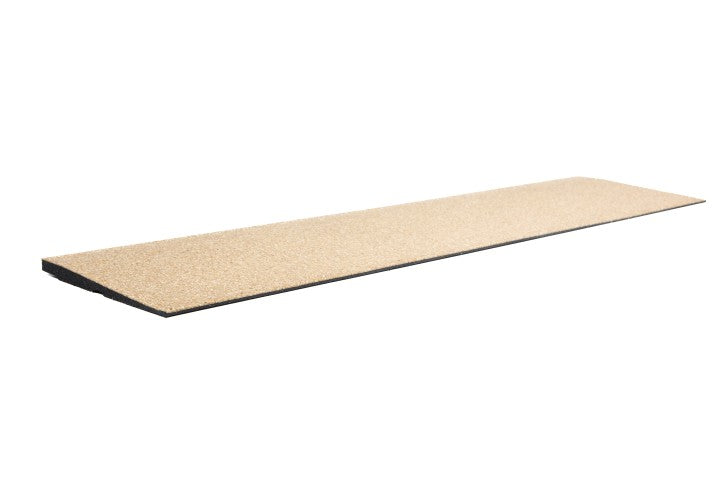

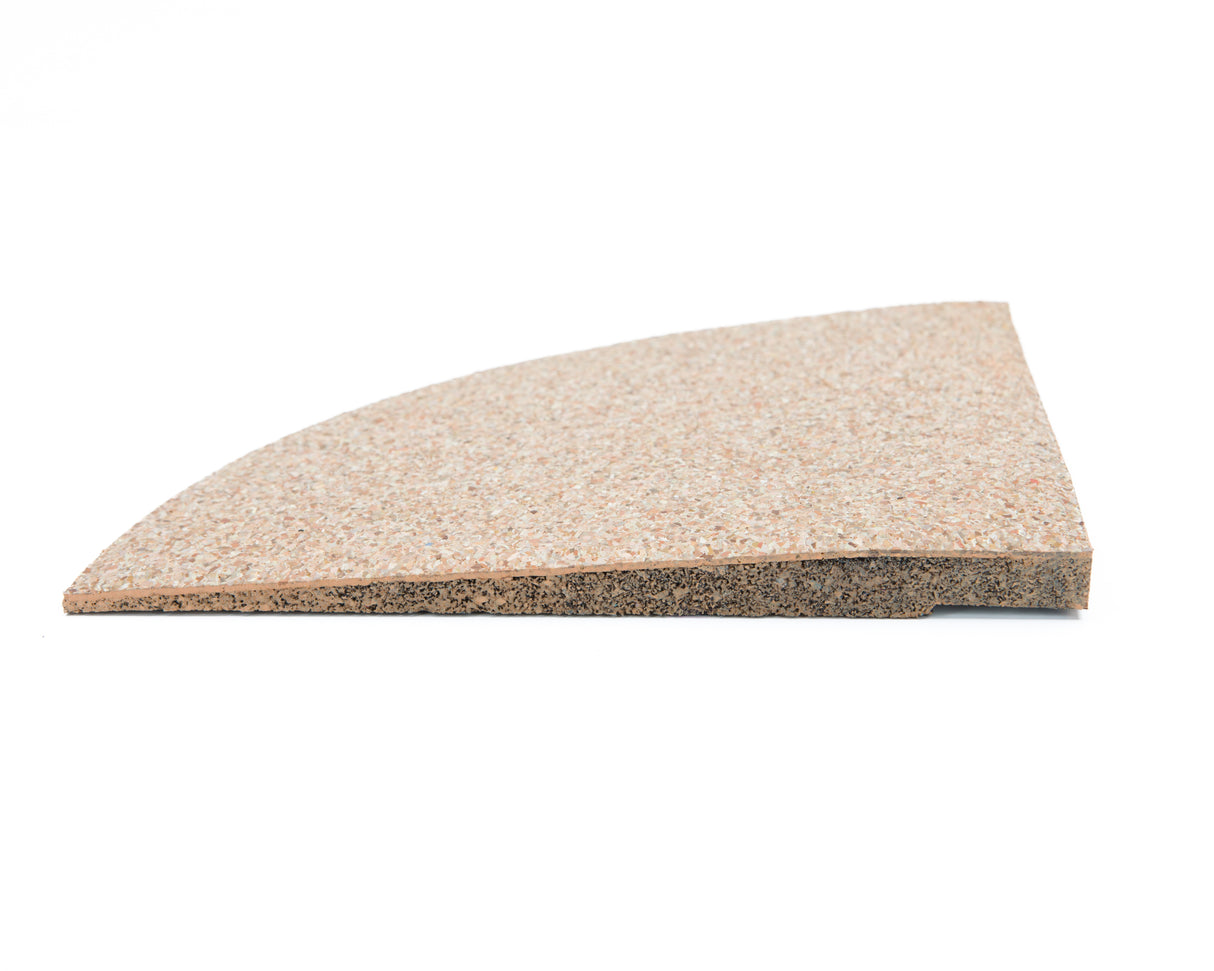

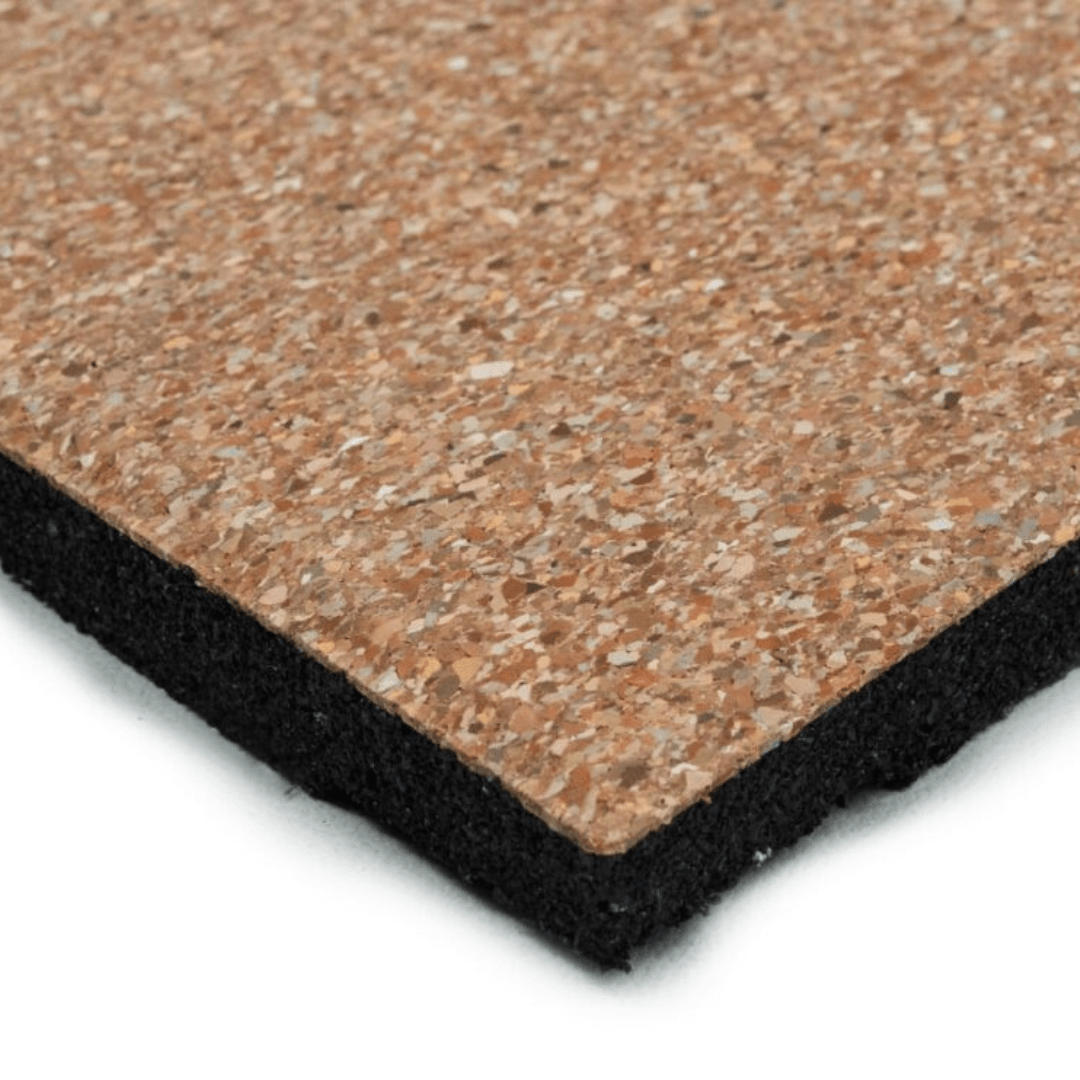

| Profile | Bevel Edge and Square Studded Underside with Holes for Connector Pieces |
| Installation | Plastic Connection System |
| Maximum Weight Drop | 140kg |
| Applications | Functional Training, Free Weights up to 140kg, Cardio & Strength, CrossFit |
| Material | |
|---|---|
| Composition | 100% Recycled Rubber |
| Technical Specification | |
|---|---|
| Width | + 4mm |
| Length | + 4mm |
| Thickness | + 2mm |
| Bulk Density Toplayer | Approx 1400kg/m3 |
| Bulk Density Sublayer | Approx 1000kg/m3 |
| Shock Absorption | 61% | EN 14808 |
| Head Injury Criteria (HIC) Test | 1.3m | EN 1177 |
| EU Fire Classification | E F1 |
| Vertical Deformation | 5.0mm | EN 14809 |
| Thermal Resistance | 0.16m2.K/W |
| Sound Insulation | 21dB Reduction |
DATA SHEET
| Thicknesses Available |
20mm |
| Width + Length |
20 x 1000mm x 1000mm |
| Tolerances |
length + width + 1.5%, thickness 2mm |
| Surface |
Cut from high density rubber roll flooring in SBR |
| Base |
Made from recycled rubber and EPDM |
| Bottom |
Connectors |
| Bulk Density |
Toplayer - Approx 1.400kg/M3
|
| Sublayer - Approx 1.000kg/M3 | |
| Shock Absorption | 61% |
| Vertical | 5.0mm |
| Head injury | 1.3m |
| Warranty | 4 Years |
Our current lead times are:
Stock items - 3 working days
Non-stock items - 5-7working days
For Pre-Order items we aim to dispatch these on the same day we receive the stock.
The website will be kept up to date with the current ETA

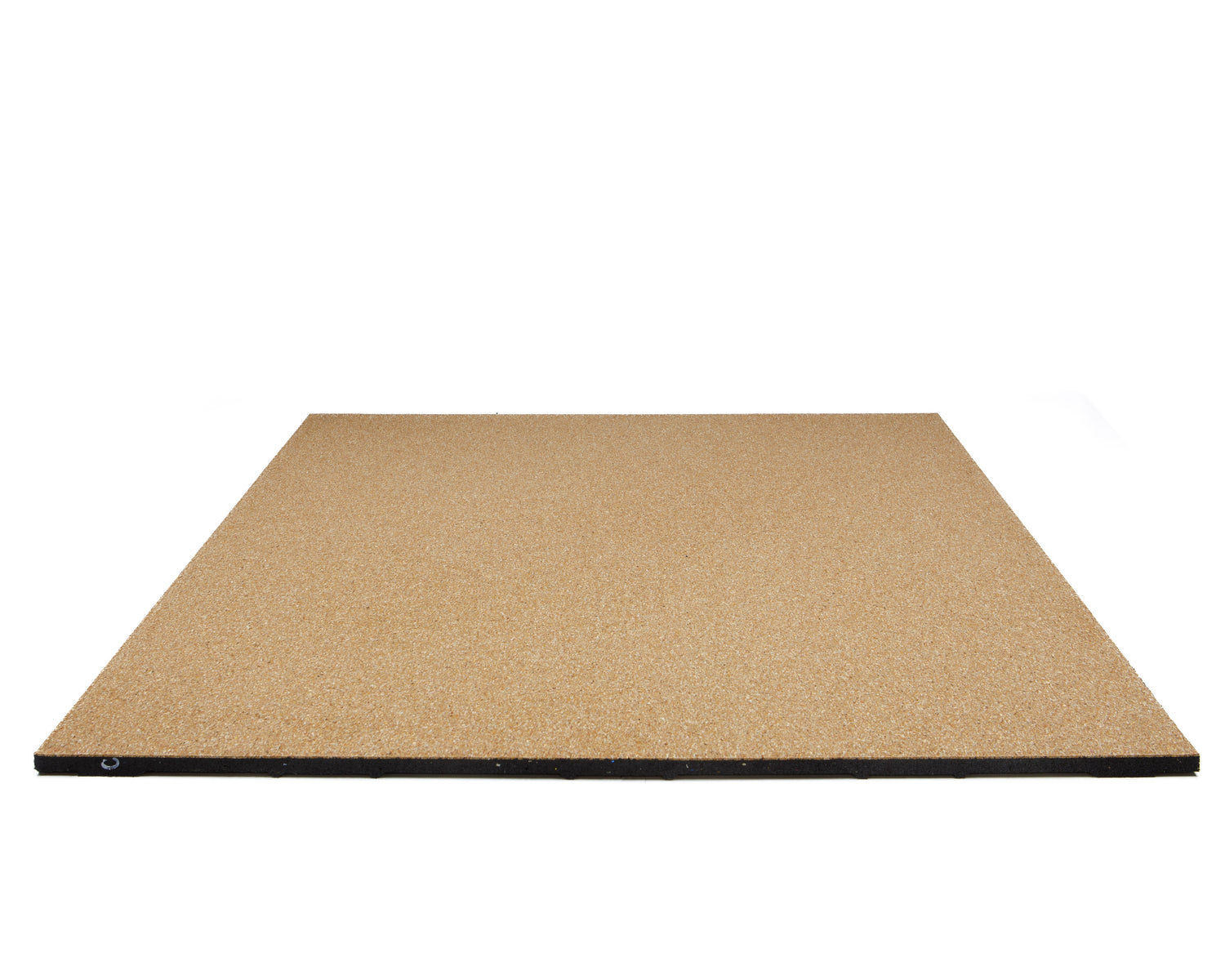

Part of our interlocking Konnecta collection of premium gym tiles, the earthy Navagio tile is the perfect option for an ultra contemporary, neutral finish.

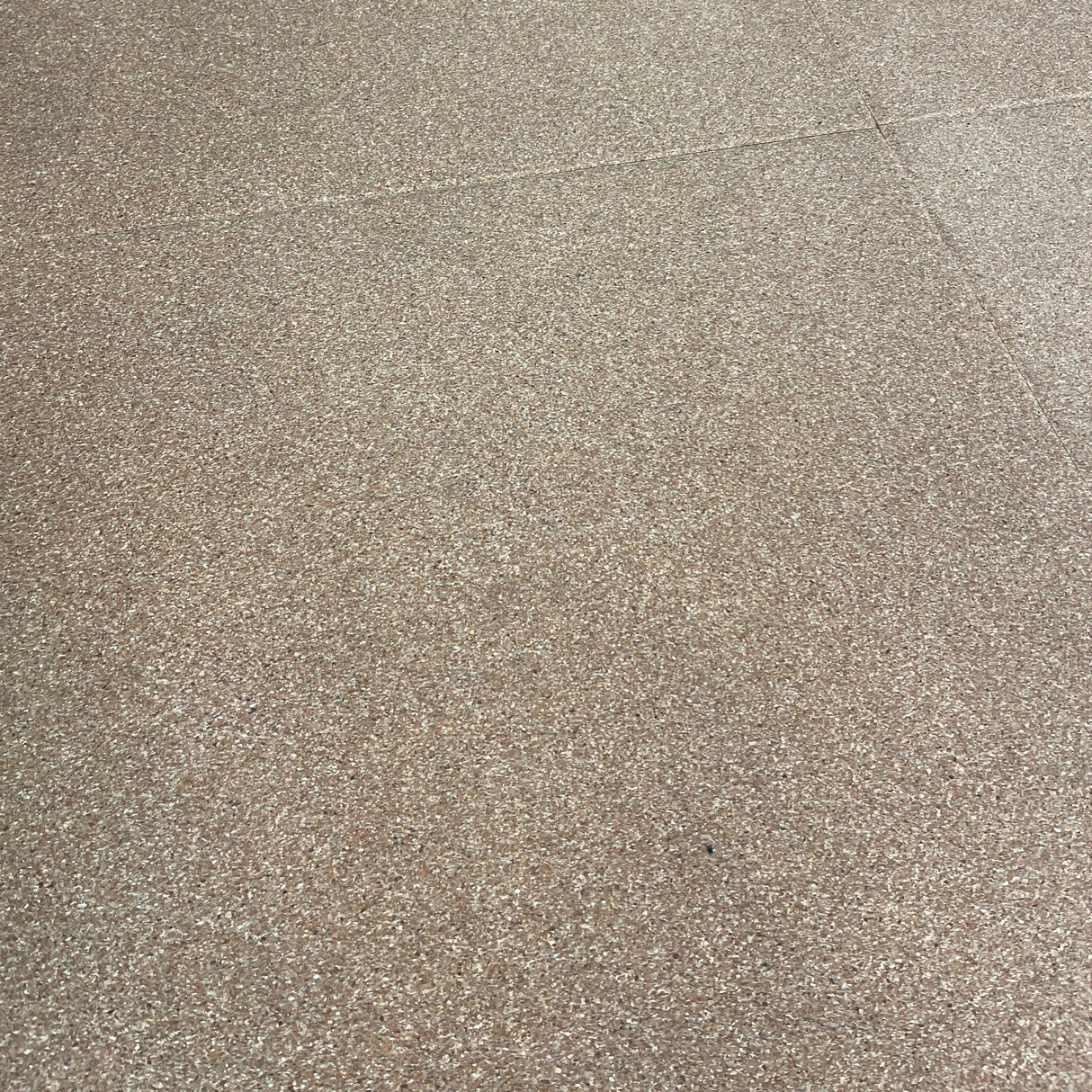

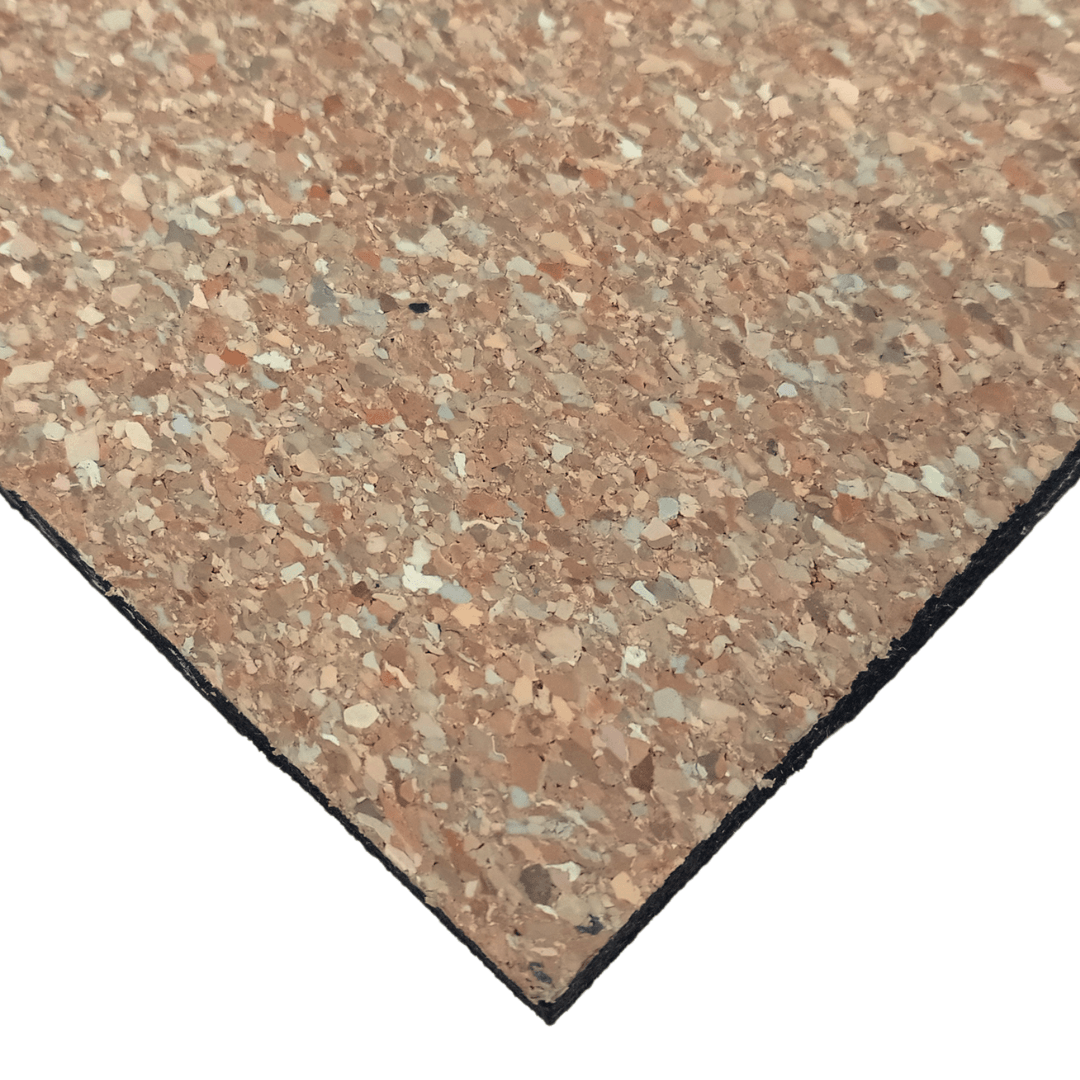

In pale, desert brown and pearly beige tones, the extra smooth top layer absorbs impact effortlessly for the perfect balance of top performance and high comfort.

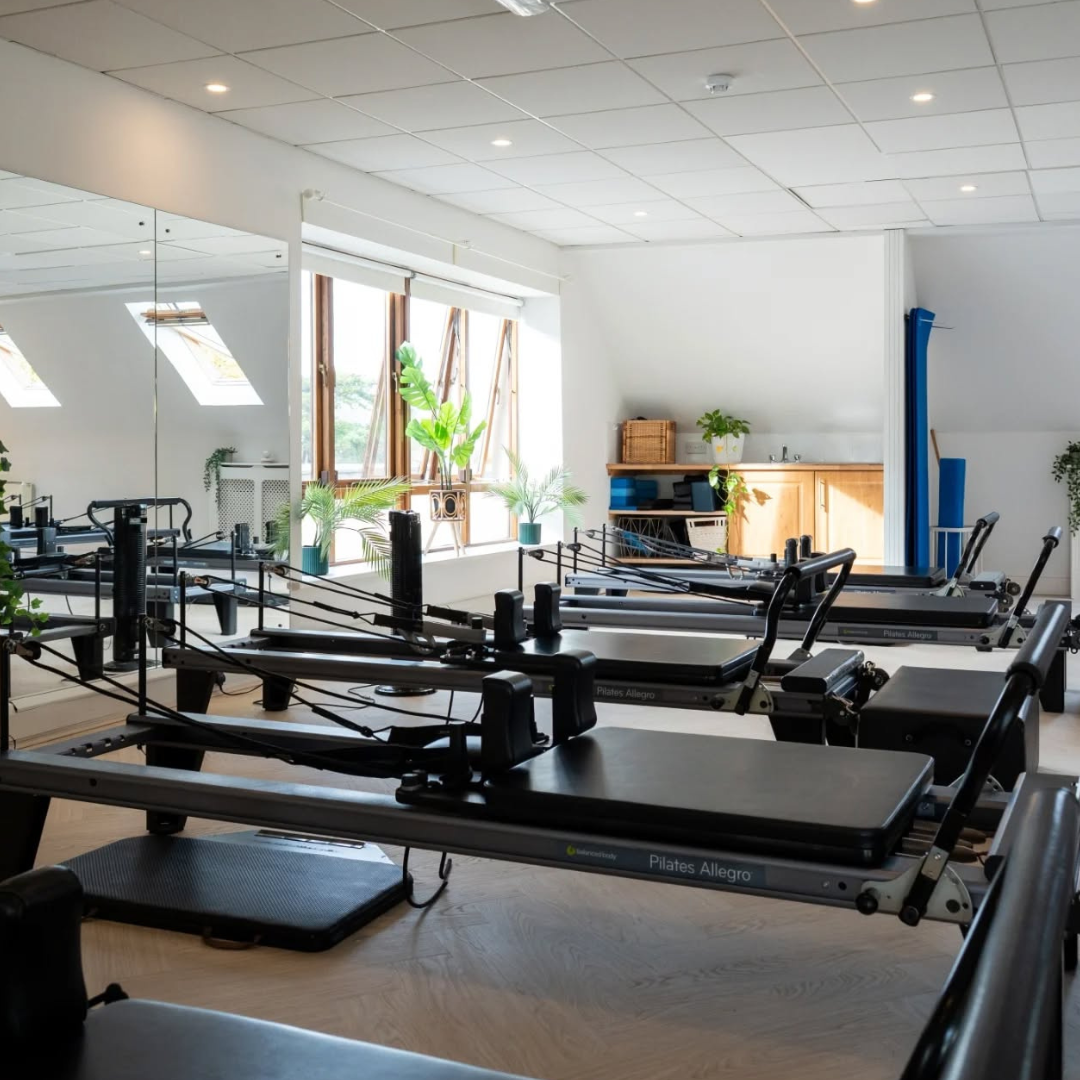

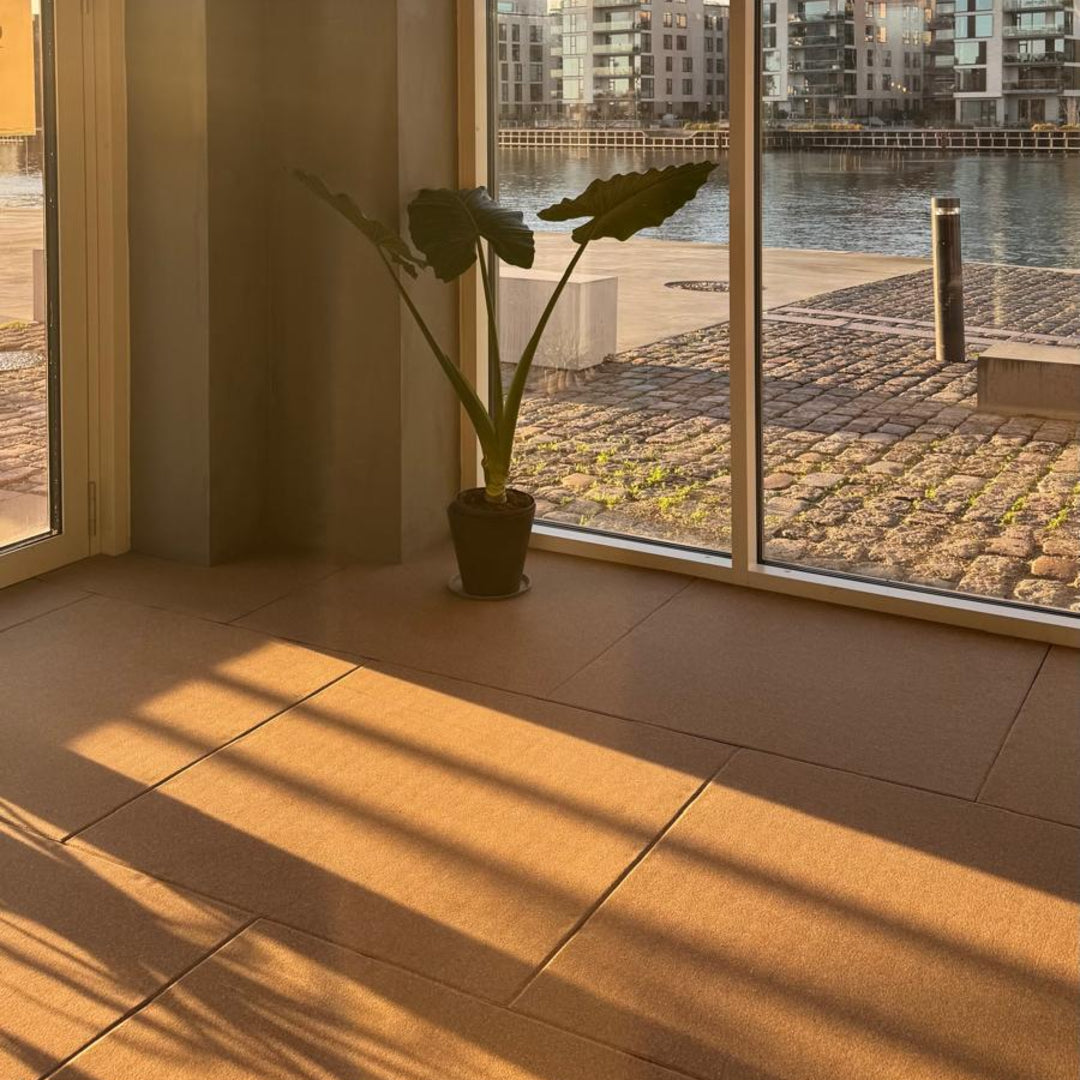

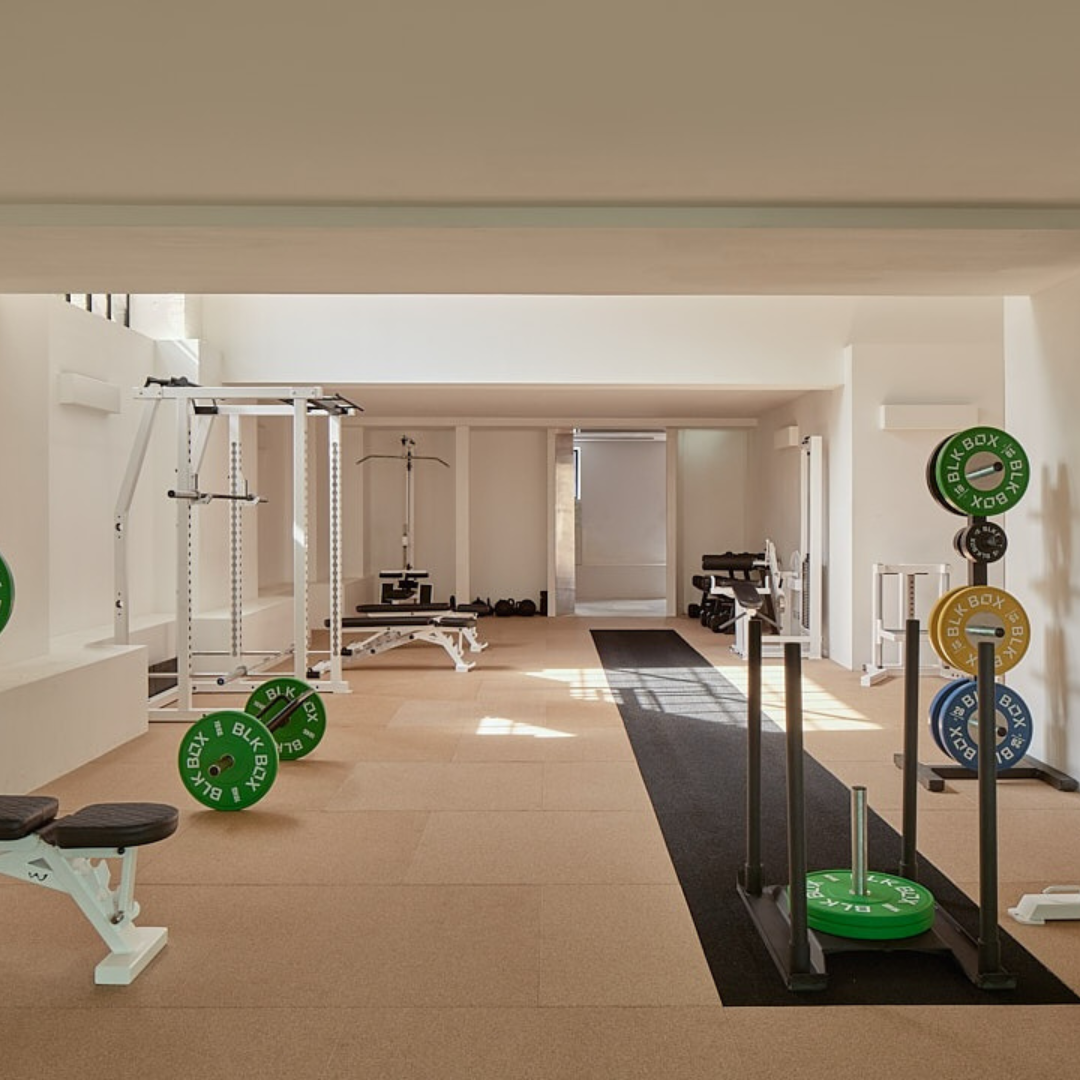

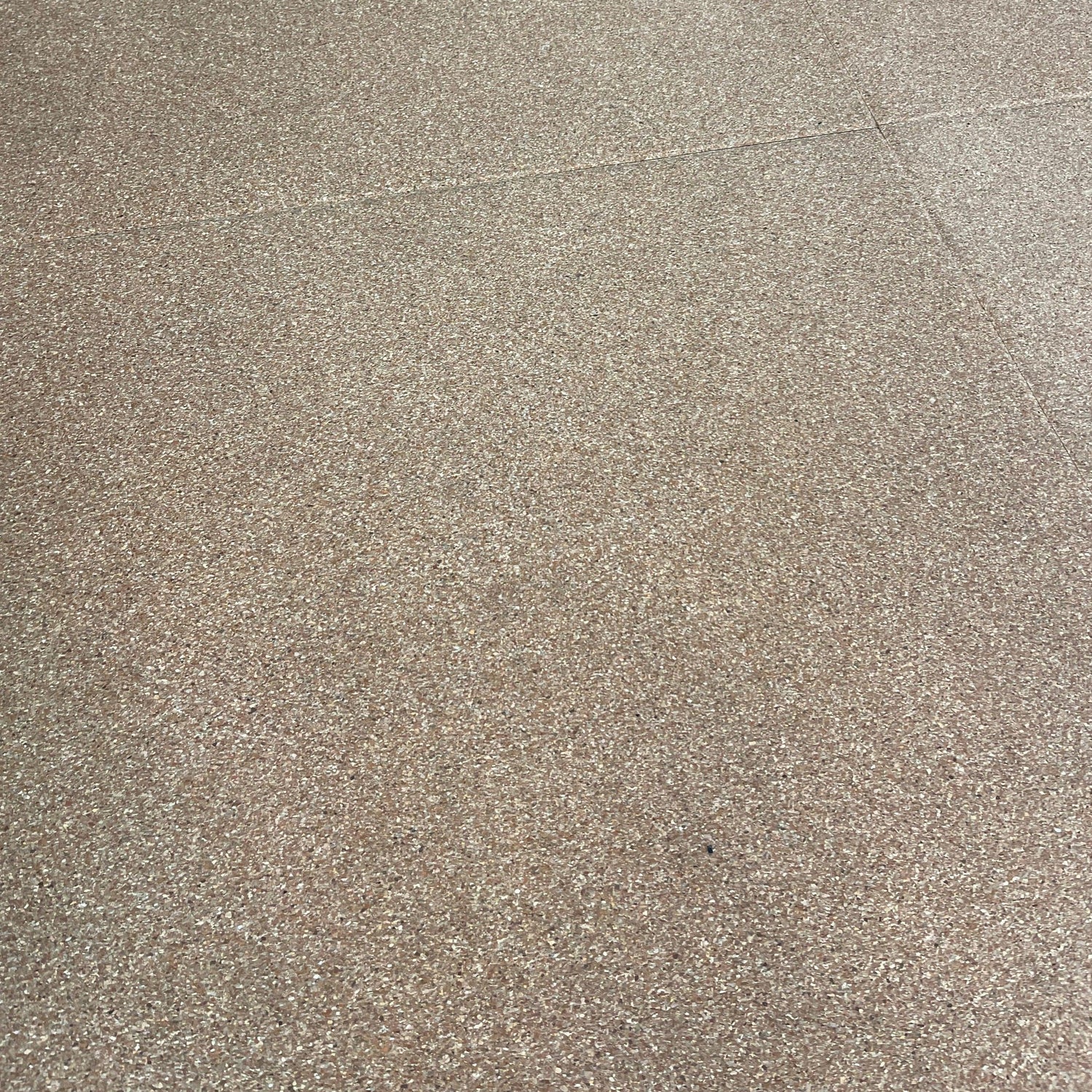

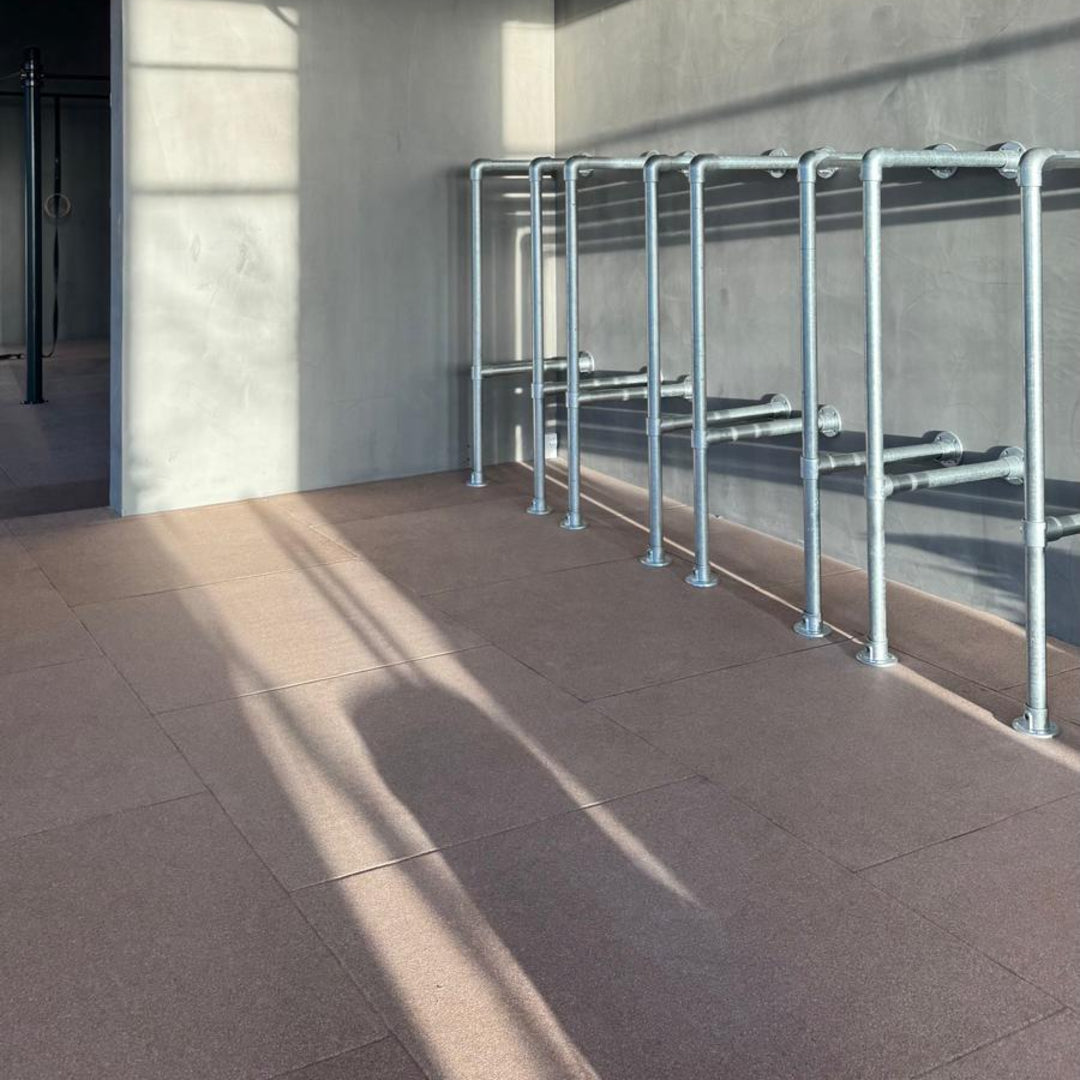

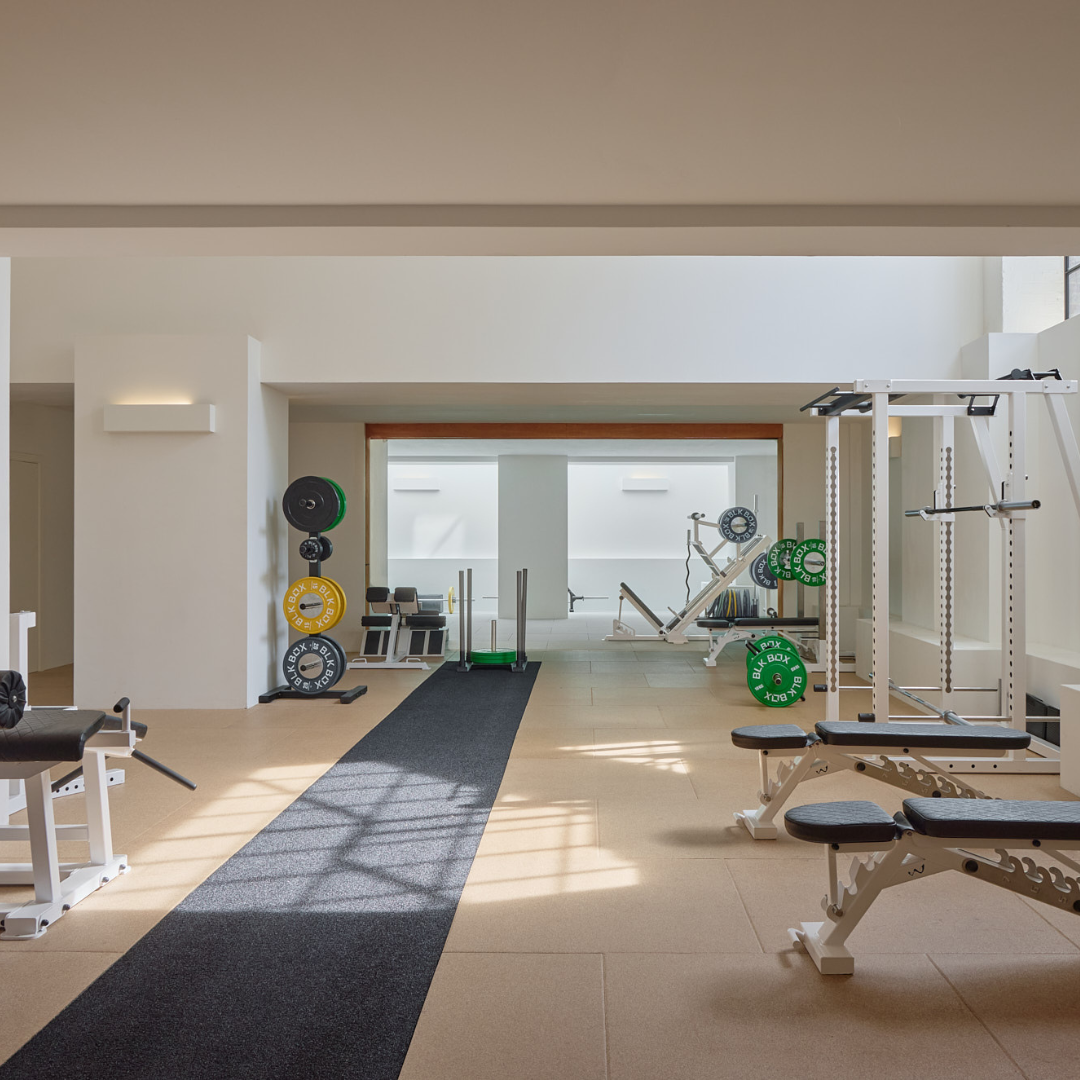

AS INSTALLED IN
The tile comes in a versatile 20mm thick designed to withstand up to 140kg weights, supports all heavy equipment and a wide range of fitness activities including CrossFit, Circuit Training and HIIT.
Unlike cheaper alternatives, we only use Binder (adhesive) which allows for an odourless rubber.
**Please note these are not a stock item. The lead time is approx 10-14 working days**
All tiles come with a 4 year guarantee against premature cracking and colour defects.

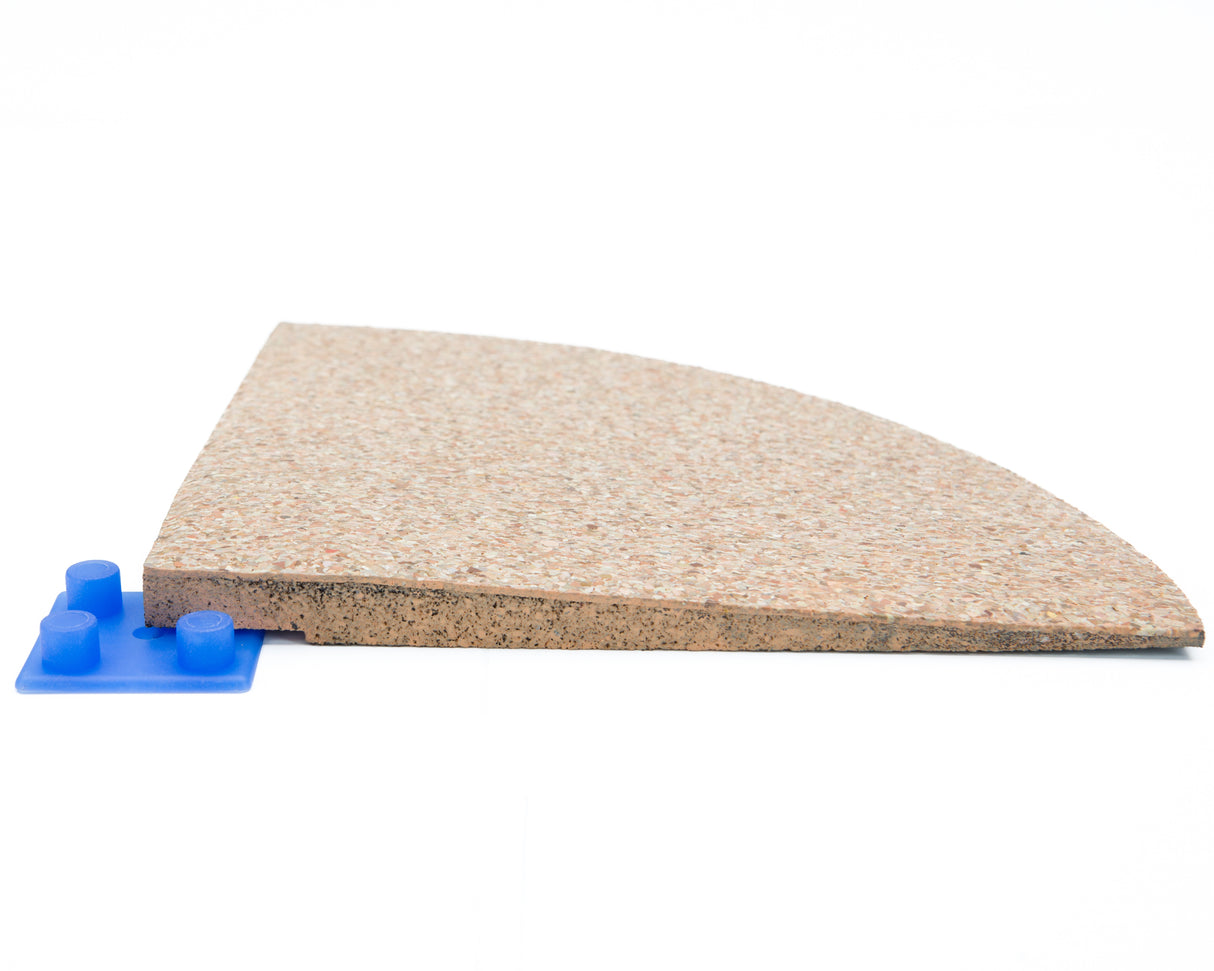

NOTE: FREE PLASTIC CONNECTOR PIECES COME WITH TILES

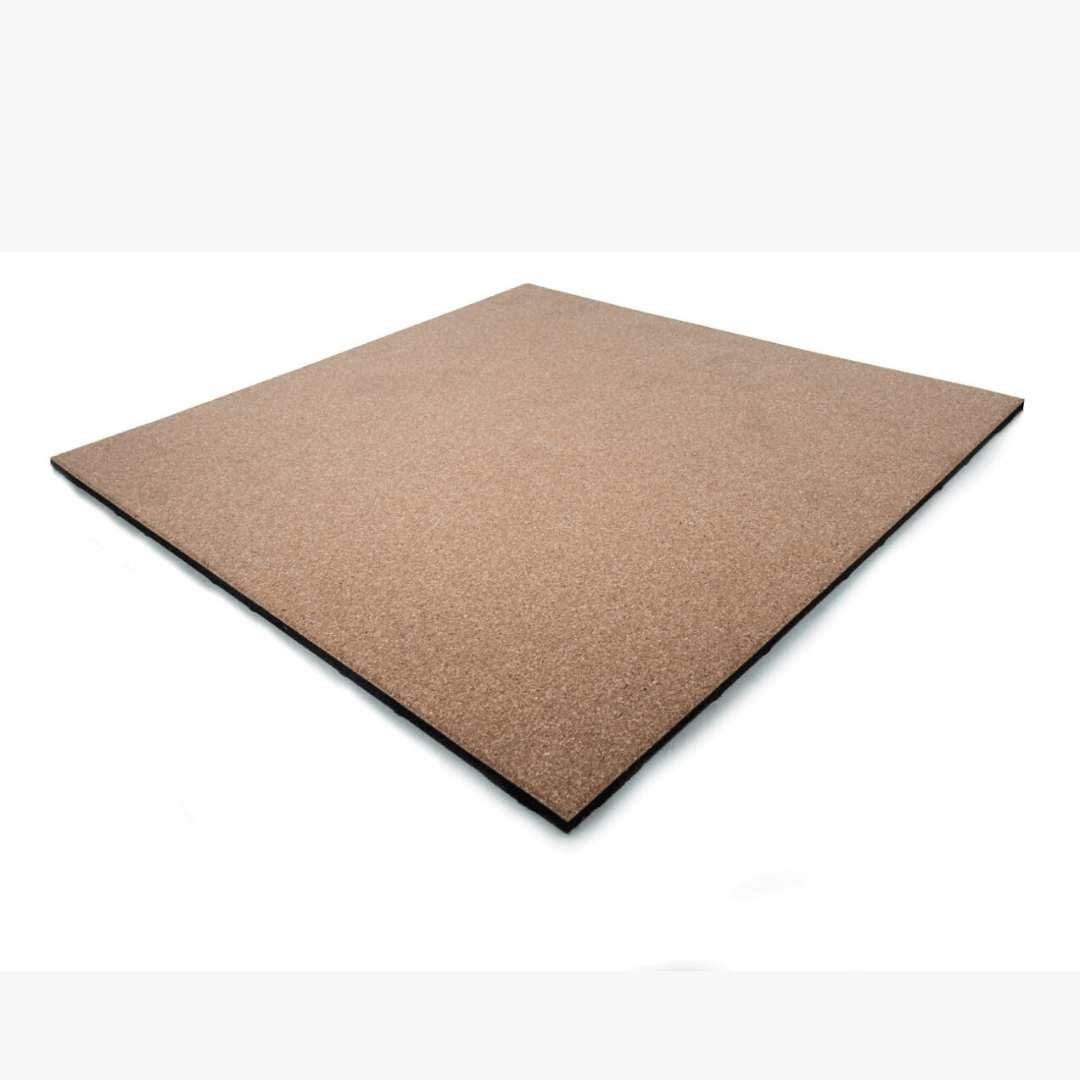

Dimensions: 1000mm x 1000mm
Shape: Square
Thickness: 20mm
Applications
Cross Fit, Functional Training, Strength & Conditioning, Medium to Heavy Weights
Installation
Please click the link here for an easy guide to fitting our Konnecta tiles. Connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place. The tiles can also be loose laid or glued using adhesive. The rubber can be cut to size using a utility knife.
Sub-floor
The sub-floor requires to be level, firm and dry.
Cleaning
Depending on traffic, the tiles can be kept clean by a standard vacuum cleaner and damp mop. Cleaning machines can be used but should have the correct pads for rubber flooring to prevent abrasion. A pH neutral cleaner with warm water should only be used and not solvent-based detergents. Newly installed floors would benefit from a degreaser in the first few weeks. Please see maintenance guidelines .
